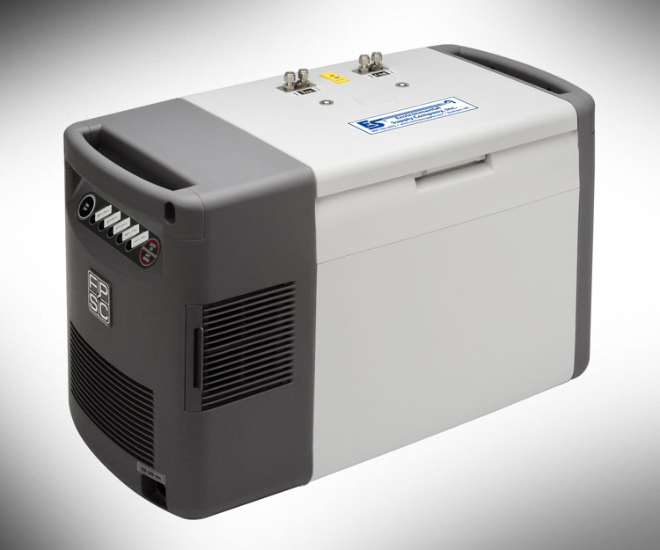

HG-C200 Condenser Cooler

The HG-C200 condenser cooler is a portable dual condensing system that provides moisture removal to ensure a dry gas sample for Mercury Method 30B and capable of Method 4 moisture measurement as well. (click on image to enlarge)


Picture 1 of 4

Related Products

SSP-40-HGS Impinger Set (Stainless Steel)

HG-PR-C40H Probe Mounted Tray

Thermally insulated
Two Pyrex knockout vessels
Two desiccant cartridges
Cooling settings range from 50ºF (10ºC) to 37ºF (3ºC)
Freeze settings range from 19ºF (-7ºC) to -0.4ºF (-18ºC)
Temperature indicators illuminate when desired temperature is reached
Warning light illuminates when system temperature rises
Switch operation emits high-pitched tone to ensure proper activation and prevent malfunction

Oprating Voltage 120 VAC
Power Consumption 48 W
Cooling Temperature When Empty  -0.4º to 50ºF (-18ºC to 10ºC) @ 86ºF (30ºC) ambient temperatures
Operating Temperature Range 32ºF to 104ºF (0ºC to 40º)
Bottle / Desiccant Capacity Bottle ~ 1.25 Liters - Dessicant ~ 50 grams H20
Dimensions 27.3" (695mm) W x 18.1" (460mm) H x 13.7" (350mm) D
Weight (empty) 33 lbs. (15 kg.)
