P-0523-OF-(X) Open Frame Pump

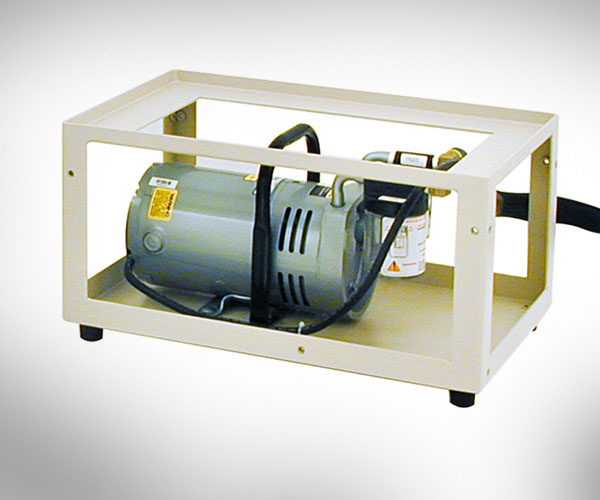

The P-0523-OF Open Frame Pump is a rotary vane vacuum pump mounted in a welded, painted, aluminum frame that is light weight but strong enough to support the Method 5 Isokinetic console that it services. The P-0523-OF Pump comes equipped with 6′ vacuum hoses, oiler, and filter jar.  It is designed to perform consistently and reliably in a wide range of conditions. See the Specifications tab choose the fittings you want included on your pump.(click on image to enlarge)


Picture 1 of 1

Related Products

C-5000 Console

CO-QC8-B-SET Brass Critical Orifice Set

Welded Lightweight, Painted Aluminum Frame
Pump Handle Mounted to Pump and Frame
6' Vacuum Hoses
Standard 110/60Hz

Non-reversible Brass or Stainless Steel Fittings Eliminates Cross Connection.
110V/60Hz or 220V/50Hz operation (see specifications for part numbers)

Weight 29 lb.
(2) 6' Vacuum Hoses
Wired for 110/60Hz

P-0523-OF-BR      Pump with Brass 3/8" Quick Connects
P-0523-OF-SS      Pump with Stainless Steel 3/8" Quick Connects
P-0523-OF-V         220V/50Hz Pump without Quick Connects
P-0523-OF-BR-V   220V/50Hz Pump with 3/8" Brass Quick Connects
P-0523-OF-SS-V   220V/50Hz Pump with 3/8" Stainless Steel Quick Connects
