V-S2 Dual VOST Sampling System

The V-S2 Dual VOST Sampling System holds two glassware sets in a single caddy with a 4-way valve at the outlet end to allow continuous sampling. After a sample run the valve can be switched to the other glassware set for sampling while sorbent cartridges in the first set are changed and leak check is performed.  The V-S2 does not include the UNI-VOS-ACD Console.  (click on image to enlarge)


Picture 2 of 7

Related Products

UNI-VOS-ACD Low Flow Control Console / Digital DGM

UC-LF-(XXX) Low Flow Umbilical / Power Box

Component Parts Include:

Vost Sample Caddie
3’ Heated Pyrex Probe Assembly (for Vost)
3’ Effective length Pyrex Probe Liner, 8mm with Cup (2 included)
Dual Glassware Set
25" Low Flow Umbilical w/Connector Box
Coolant Recirculating Pump
4 Impinger Cold Box

See specifications for quantities and description

Qty. Part# Description
1 V-SC VOST Sample Caddy
1 PRAM-P03-08M 3' Pyrex Heated Probe Assembly
2 PRLM-P03-08M 3' Pyrex Liner w/cup & 8mm End
1 GS-V2 Dual VOST Glassware Set *
1 UC-LF-025 25' Low Flow Umbilical
1 M23-RC 115V Submersible Pump

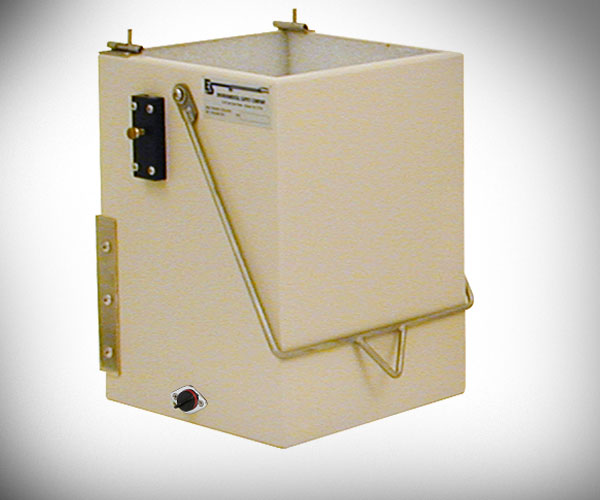

1 M5-CB04 4-Impinger Cold Box
1 JB-15 Junction Box w/4 Pin Amphenol & 3 Receptacles

 *Go To GS-V2 for Glassware Set Description
Above Parts Available Separately
