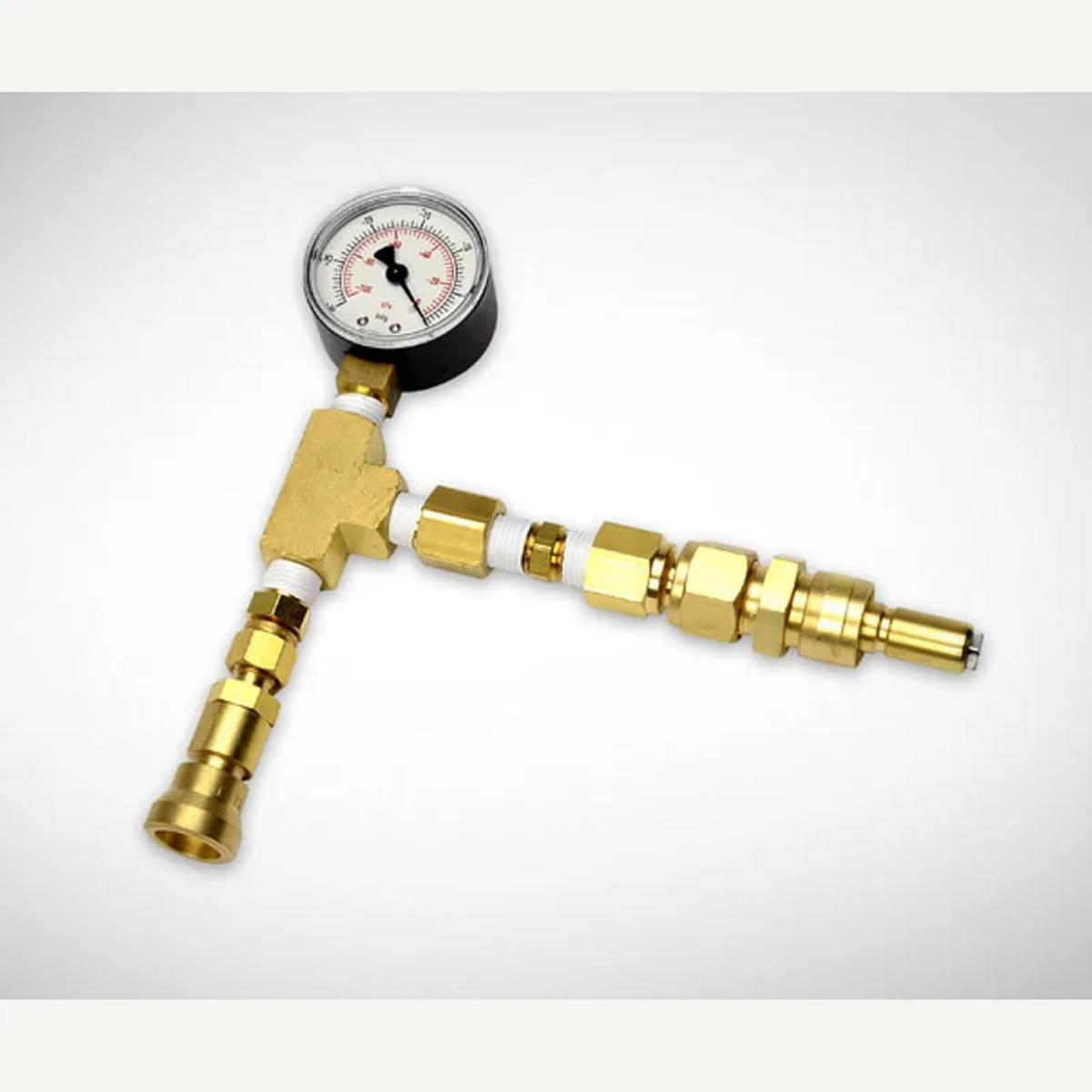

CO-FA-(XX) Flow Adapters
MethodsM5
The CO-FA-(XX) Flow Adapters convert a Method 5 metering console for low flow or controlled flow applications with the aid of these simple flow control devices. The adapter is placed between the low flow umbilical and the sample inlet of the Method 5 console.
Features
- Orifice adapters available in sizes ranging from 0.250 lpm to 34 lpm nominal flows (determined at standard conditions of 70°F, 29.93" Hg).
- 1/4" female quick connect
- 0-30" Hg vacuum gauge
- Critical orifice housed in a 1/2" male quick connect.
See Specifications For Options
Specifications
| Part # | Description |
|---|---|
| CO-FA-0.25 | Flow Adapter, .25LPM, 1/4"-1/2" Quick Connect (Brass) |
| CO-FA-0.35 | Flow Adapter, .35LPM, 1/4"-1/2" Quick Connect (Brass) |
| CO-FA-0.45 | Flow Adapter, .45LPM, 1/4"-1/2" Quick Connect (Brass) |
| CO-FA-0.50 | Flow Adapter, .5LPM, 1/4"-1/2" Quick Connect (Brass) |
| CO-FA-01 | Flow Adapter, 1LPM, 1/4"-1/2" Quick Connect (Brass) |
| CO-FA-02 | Flow Adapter, 2LPM, 1/4"-1/2" Quick Connect (Brass) |
| CO-FA-23 | Flow Adapter, 23LPM, 1/4"-1/2" Quick Connect (Brass) |
| CO-FA8-05.7 | Flow Adapter, 5.7LPM, 1/2" Quick Connects (Brass) |
