SKU
GP-103-GL4T

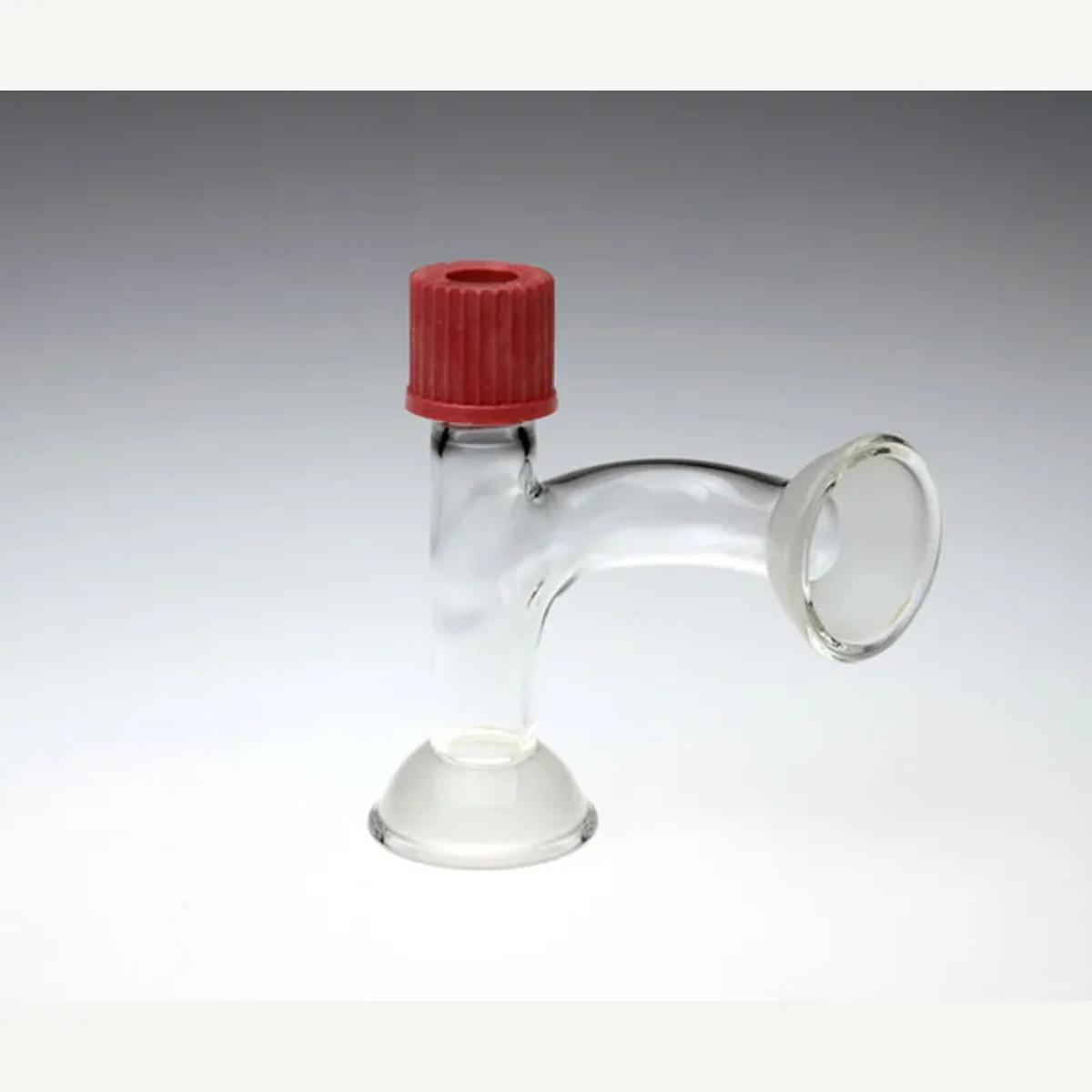

GP-103-GL4T Double L / Thermocouple Port (M202)
The GP-103-GL4T Double L adapter with a built in thermocouple port is used as an option on Method 202 as well as Method 5 adaptations when specifications indicate temperature measurement needs to be "after the filter".
Features
The GP-103-GL4T is a Double L connector with a thermocouple port and cap with washer. The two # 28 sockets allow for connections with # 28 ball joints when clamped with a GP-109 Pinch Clamp. Adaptations for Method 202 include the addition of a TC-103M Thermocouple and a standard GP-102 Filter Outlet. This assembly is seen as the second image of the gallery.
