SKU
HG-C200

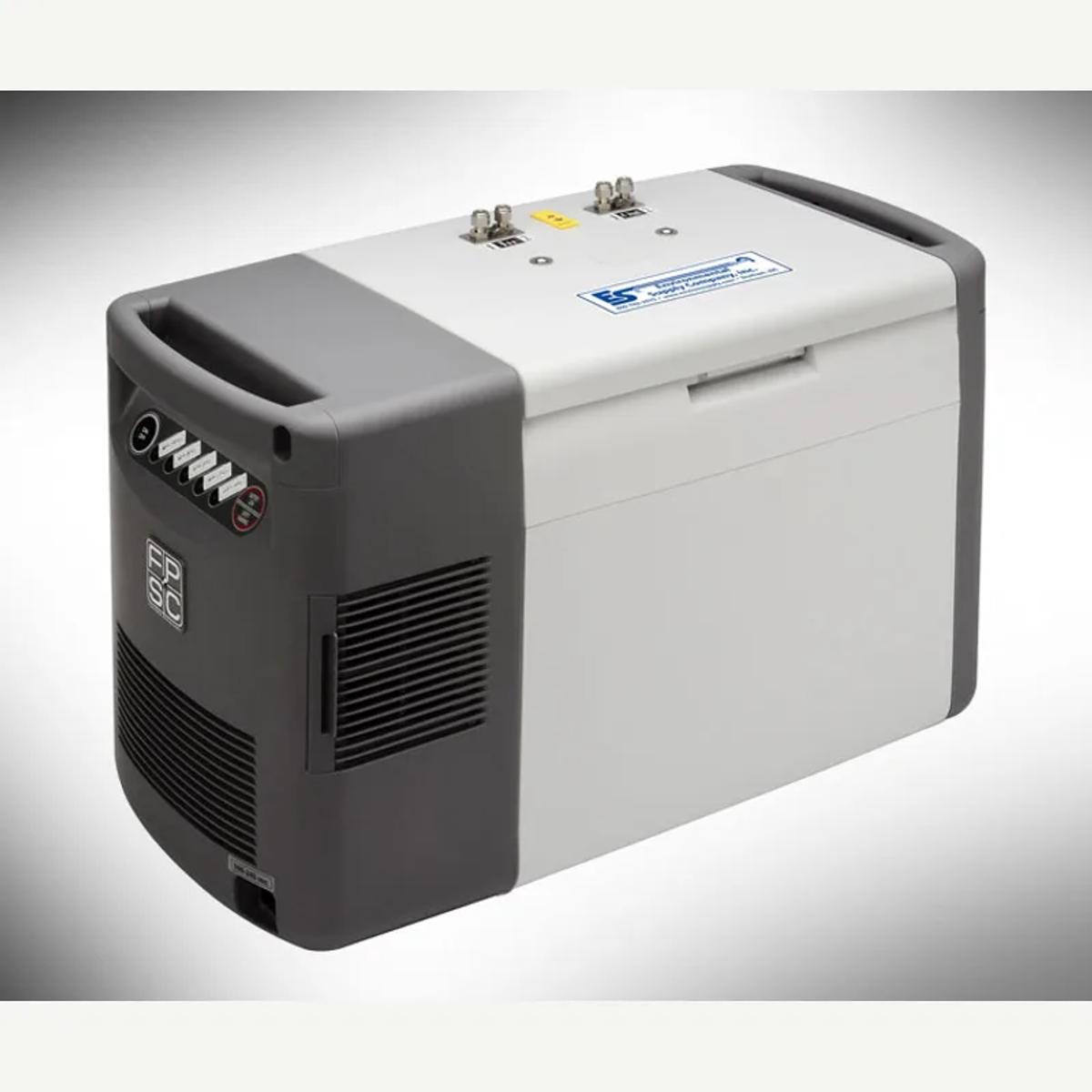

HG-C200 Condenser Cooler
The HG-C200 condenser cooler is a portable dual condensing system that provides moisture removal to ensure a dry gas sample for Mercury Method 30B and capable of Method 4 moisture measurement as well.
Features
- Thermally insulated
- Two Pyrex knockout vessels
- Two desiccant cartridges
- Cooling settings range from 50ºF (10ºC) to 37ºF (3ºC)
- Freeze settings range from 19ºF (-7ºC) to -0.4ºF (-18ºC)
- Temperature indicators illuminate when desired temperature is reached
- Warning light illuminates when system temperature rises
- Switch operation emits high-pitched tone to ensure proper activation and prevent malfunction
Specifications
| Column 1 | Column 2 |
|---|---|
| Operating Voltage | 120 VAC |
| Power Consumption | 48 W |
| Cooling Temperature When Empty | -0.4º to 50ºF (-18ºC to 10ºC) @ 86ºF (30ºC) ambient temperatures |
| Operating Temperature Range | 32ºF to 104ºF (0ºC to 40º) |
| Bottle / Desiccant Capacity | Bottle ~ 1.25 Liters - Desiccant ~ 50 grams H2O |
| Dimensions | 27.3" (695mm) W x 18.1" (460mm) H x 13.7" (350mm) D |
| Weight (empty) | 33 lbs. (15 kg.) |
