SKU
M5-CB08

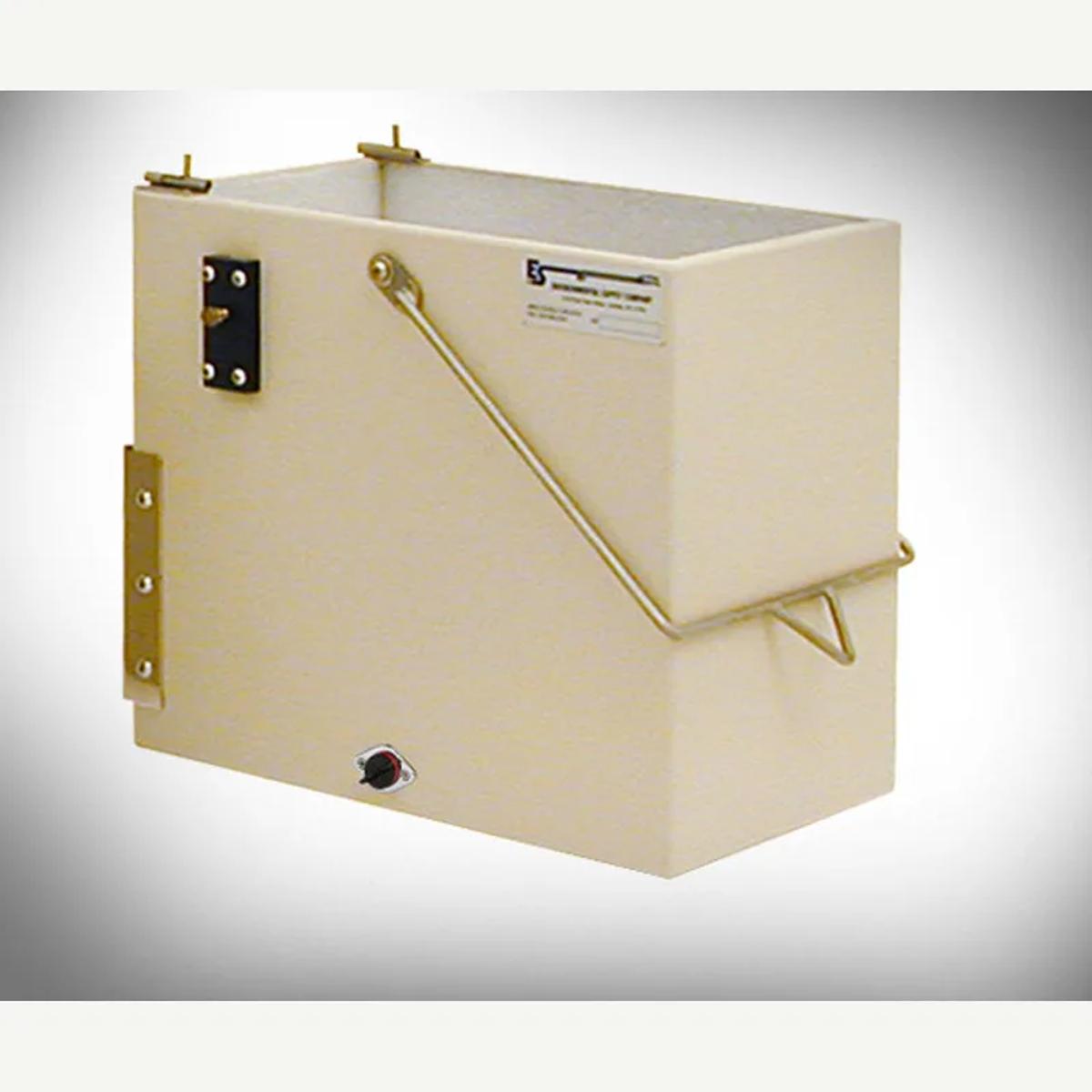

M5-CB08 Impinger Box (M23)
The M5-CB06 Impinger Box is designed to hold 8 impingers comfortably and may hold up to 12 impingers. The impinger box insulation is waterproof to eliminate breakdown and the corners are fully welded to accommodate the extra weight of ice and water. The 8 impinger box is recommended for use for the Method 23 train to accommodate submersible recirculating pump and the GP-153 Short Knockout Impinger.
Features
- Holds 8 to 12 Impingers
- Stainless Steel Handle With Centering Loop
- Stainless Steel Spring Loaded Locks for Secure Attachment to Filter Box
- Slide Block With Thumbscrew for Outlet Adapter or Strain Relief Bracket
- Waterproof Insulation
- Built-in Drain With Gasket
- Welded Construction
Specifications
- 14-1/2"L x 9-1/2"W x 13"H (OD)
- Weight: 10 lb. (without ice)
- Closed Cell Foam Insulation
- Stainless Steel Handle and Mounting Slide Brackets
- Mounting Block With Thumbscrew
- Spring Loaded Locks for Secure Attachment to Filter Box
