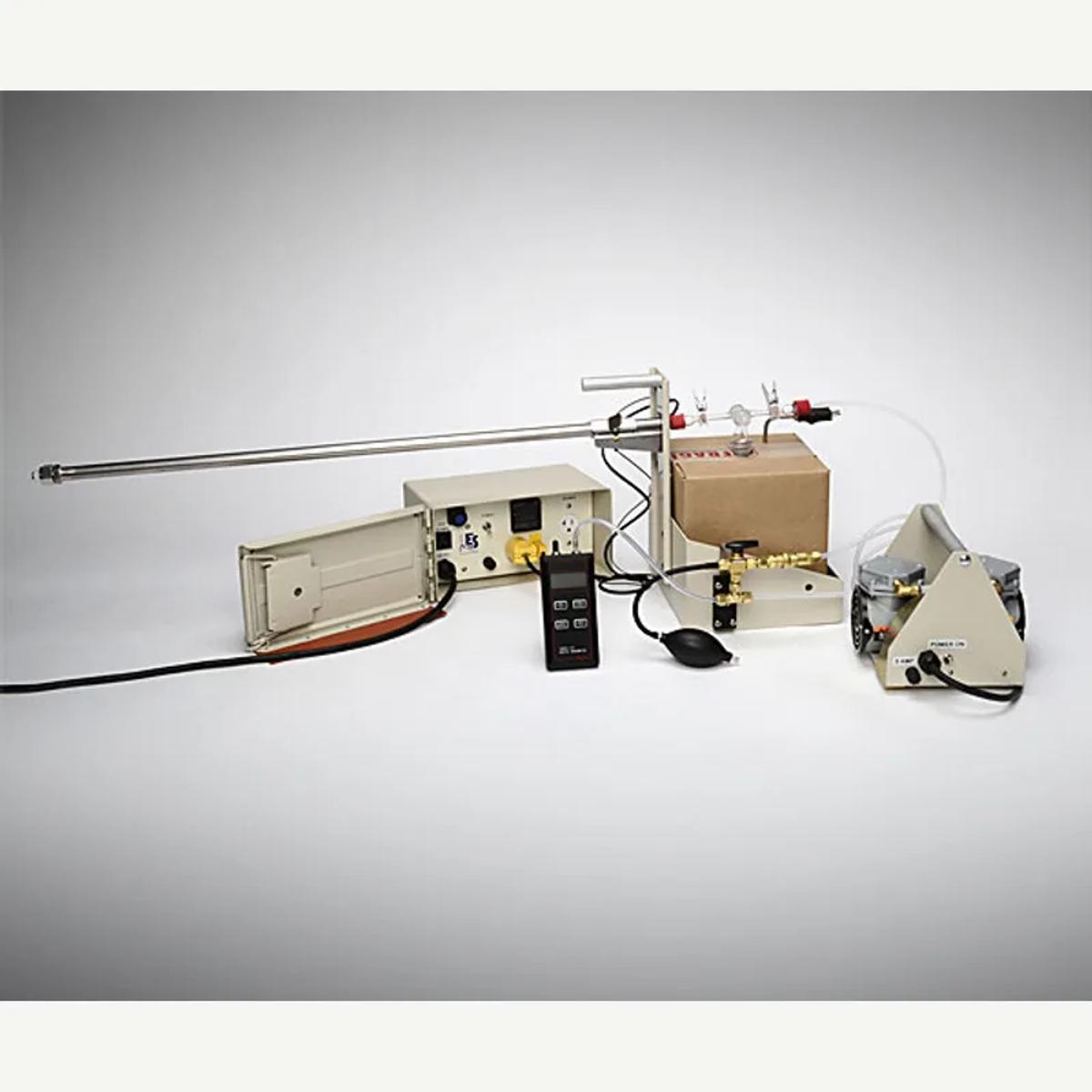

M7-S1 Method 7 Sampling System

MethodsM7

The M7-S1 Method 7 Sampling System is for the determination of nitrogen oxide emissions from stationary sources. The system is complete and consists of a heated, Pyrex lined probe assembly, a sample caddy, multiple evacuation flasks, a 3-way Pyrex valve, a hand purge pump, an evacuation pump, a 3-way pump selection valve, and digital manometer pressure sensor.

Features

Digital Manometer
Pyrex Valve
Heated Probe Assembly
Single Stage Temperature Controller
Extra Pyrex Valves and Flasks Included

Specifications

Qty. I Part # I Description

1 PRAM-P03-06 Heated 3' Probe Assembly, 3/8" With Cup
2 PRLM-P03-06 Pyrex 3' Liner, 3/8" With Cup
1 GPA-B12-06GL Pyrex Adapter With #12 Ball Joint and 3/8" Cap
1 M6-SC Support Caddy
6 GP-701 3 Way Valve (5 extra valves)
6 GP-702 Encased Flask (5 extra flasks)
1 #PM:SKNU-14 90° 3/4" Tube Adapter
1 PPM-477-5 Digital Manometer, 0-30 psid
1 M7 Valve M7 Valve Flow Control Assembly
1 M7 Pump Method 7 Pump Assembly
1 M5-DC-1 Single Stage Digital Temperature Controller
1 GPA-S12-04GL #12 Socket Pyrex Adapter With 1/4" Cap
2 GP-611 #12 Pinch Clamps
