METHOD-8A-SO3-CONTROLLED-CONDENSATE-SAMPLING-SYSTEM
Method 8A (SO3) Controlled Condensate Sampling System - NCASI
MethodsM8A

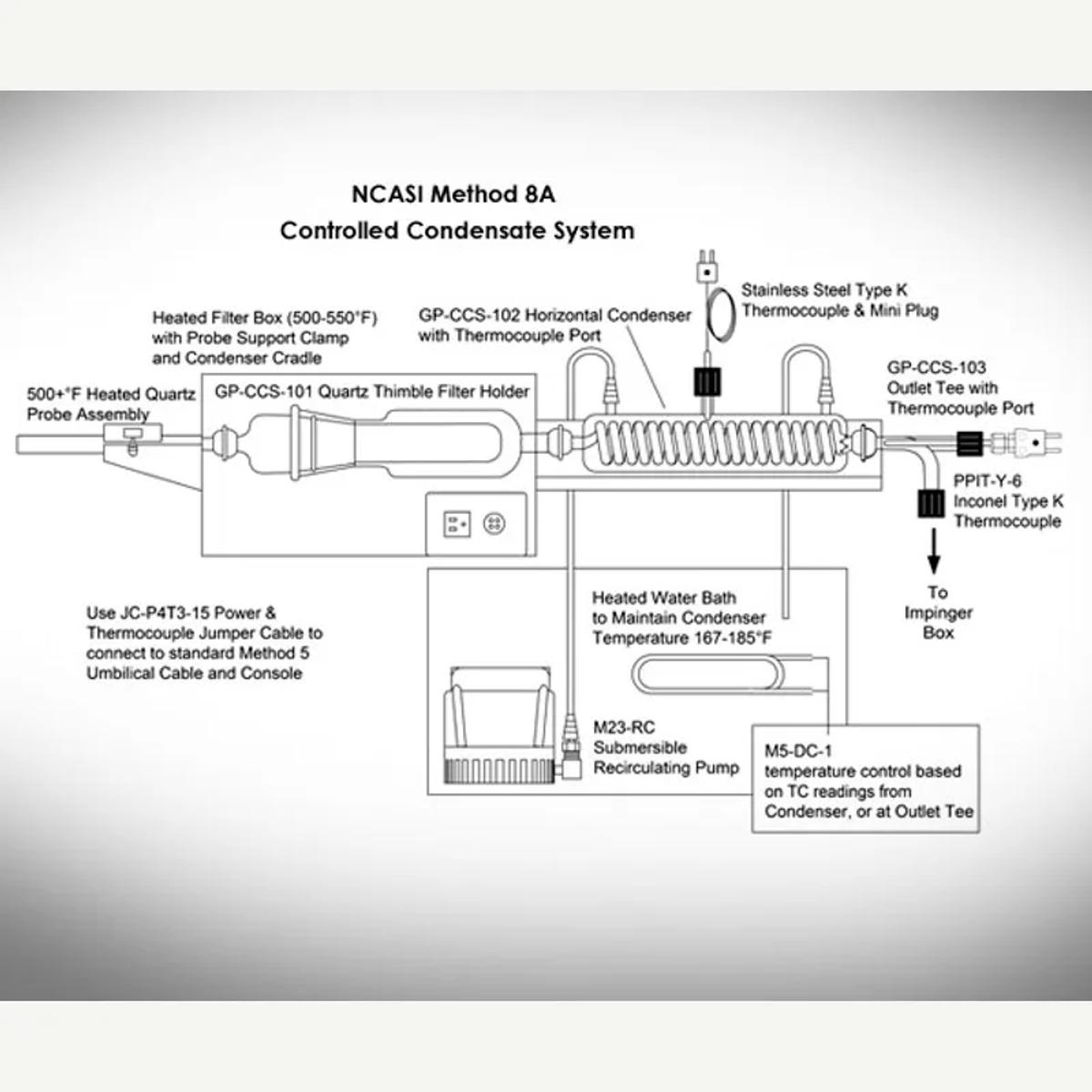

Method 8A - NCASI is the determination of sulfuric acid vapor or mist, and sulfur dioxide SO3 emissions from kraft recovery furnaces. The ESC Controlled condensate system utilizes a high temperature oven to house a thimble filter holder followed by a heated coil condenser to achieve separation of sulfuric acid vapor or mist (including sulfur trioxide) and sulfur dioxide.
Features
- 6' Quartz Heated Probe Liner
- Heated Filter Box (up to 500°)
- Single Station Digital Temperature Controller
- Quartz Thimble Holder
- 13” Condenser
- 6” Inconel Thermocouple Assembly
- 15 ft. Jumper Cable
- Uses 30mm x 100mm Quartz Thimble Media
Specifications
System Components
| Qty. | Part # | Description |
|---|---|---|
| 1 | CCS-PRA-Q06 | 6 foot effective length quartz probe with heated liner |
| 1 | PRL-Q06 | 6 foot effective length quartz probe liner with ball joint and O-ring |
| 1 | CCS-HB | Heated filter box (up to 500°) |
| 1 | CCS-WRS | Heated water recirculation system |
| 1 | M5-DC-1 | Single station digital temperature controller |
| 1 | GP-CCS-101 | Quartz thimble holder with a # 28 in and out (2 recommended) |
| 1 | GP-CCS-102-NF | 13” Condenser with a #28 in and out (no frit) (2 recommended) |
| 1 | GP-CCS-103 | Pyrex “T” adapter 3/8” to ¼” (2 recommended) |
| 1 | PPIT-Y-06 | 6” Inconel thermocouple assembly |
| 1 | CCS-P4T3-15 | 15 ft. jumper cable with a 4 pin Amphenol and three thermocouples |
| 1 | PRI-T-Q30100 | Quartz Thimble style filter, box of 25 (30mm x100mm) |
All above parts sold separately
