SKU
P-0523-OF-(X)

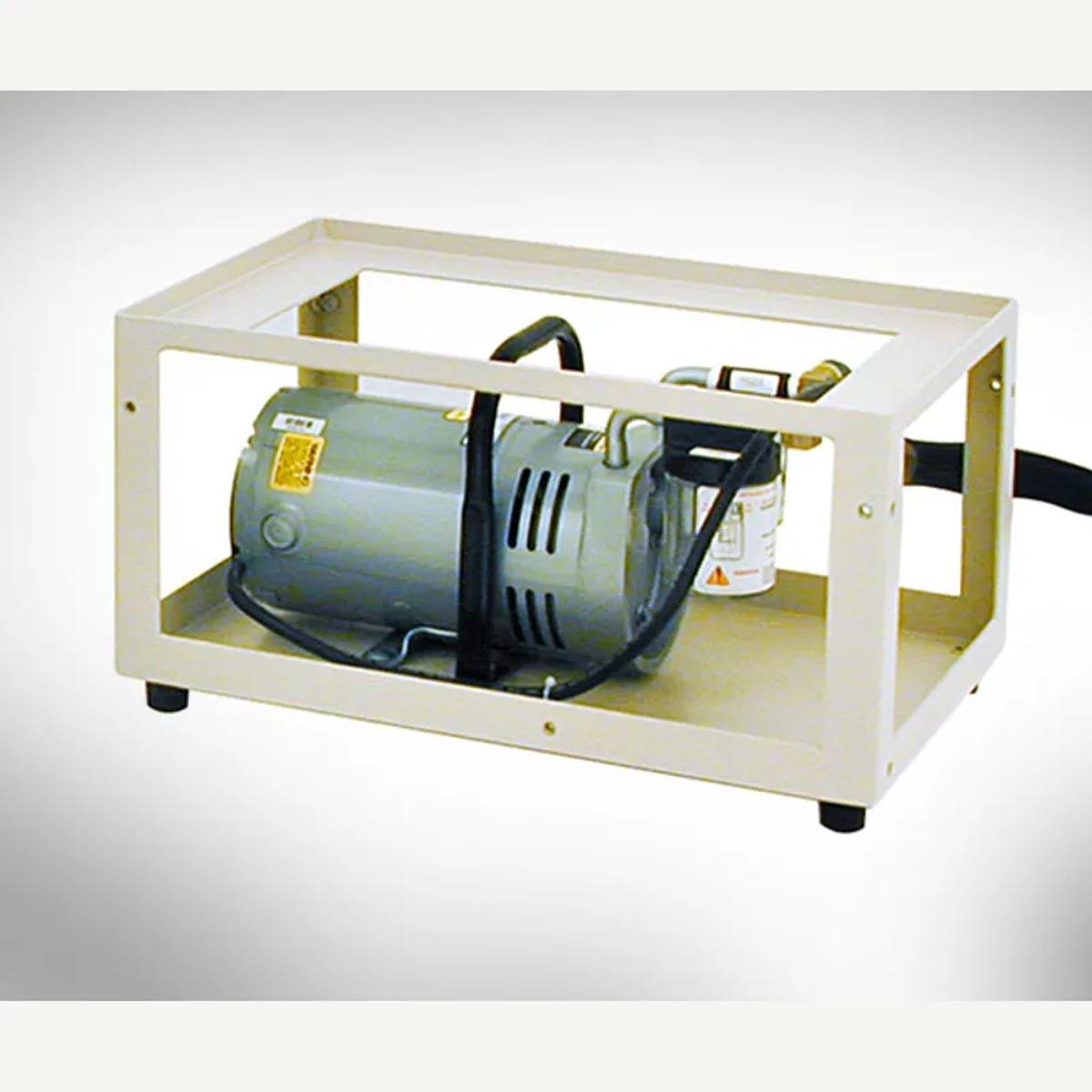

P-0523-OF-(X) Open Frame Pump
MethodsM5
The P-0523-OF Open Frame Pump is a rotary vane vacuum pump mounted in a welded, painted, aluminum frame that is light weight but strong enough to support the Method 5 Isokinetic console that it services. The P-0523-OF Pump comes equipped with 6' vacuum hoses, oiler, and filter jar. It is designed to perform consistently and reliably in a wide range of conditions. See the Specifications tab choose the fittings you want included on your pump.
Features
- Welded Lightweight, Painted Aluminum Frame
- Pump Handle Mounted to Pump and Frame
- 6' Vacuum Hoses
- Standard 110/60Hz
- Non-reversible Brass or Stainless Steel Fittings Eliminates Cross Connection.
- 110V/60Hz or 220V/50Hz operation (see specifications for part numbers)
Specifications
- Weight 29 lb.
- (2) 6' Vacuum Hoses
- Wired for 110/60Hz
Options:
- P-0523-OF-BR Pump with Brass 3/8" Quick Connects
- P-0523-OF-SS Pump with Stainless Steel 3/8" Quick Connects
- P-0523-OF-V 220V/50Hz Pump without Quick Connects
- P-0523-OF-BR-V 220V/50Hz Pump with 3/8" Brass Quick Connects
- P-0523-OF-SS-V 220V/50Hz Pump with 3/8" Stainless Steel Quick Connects
