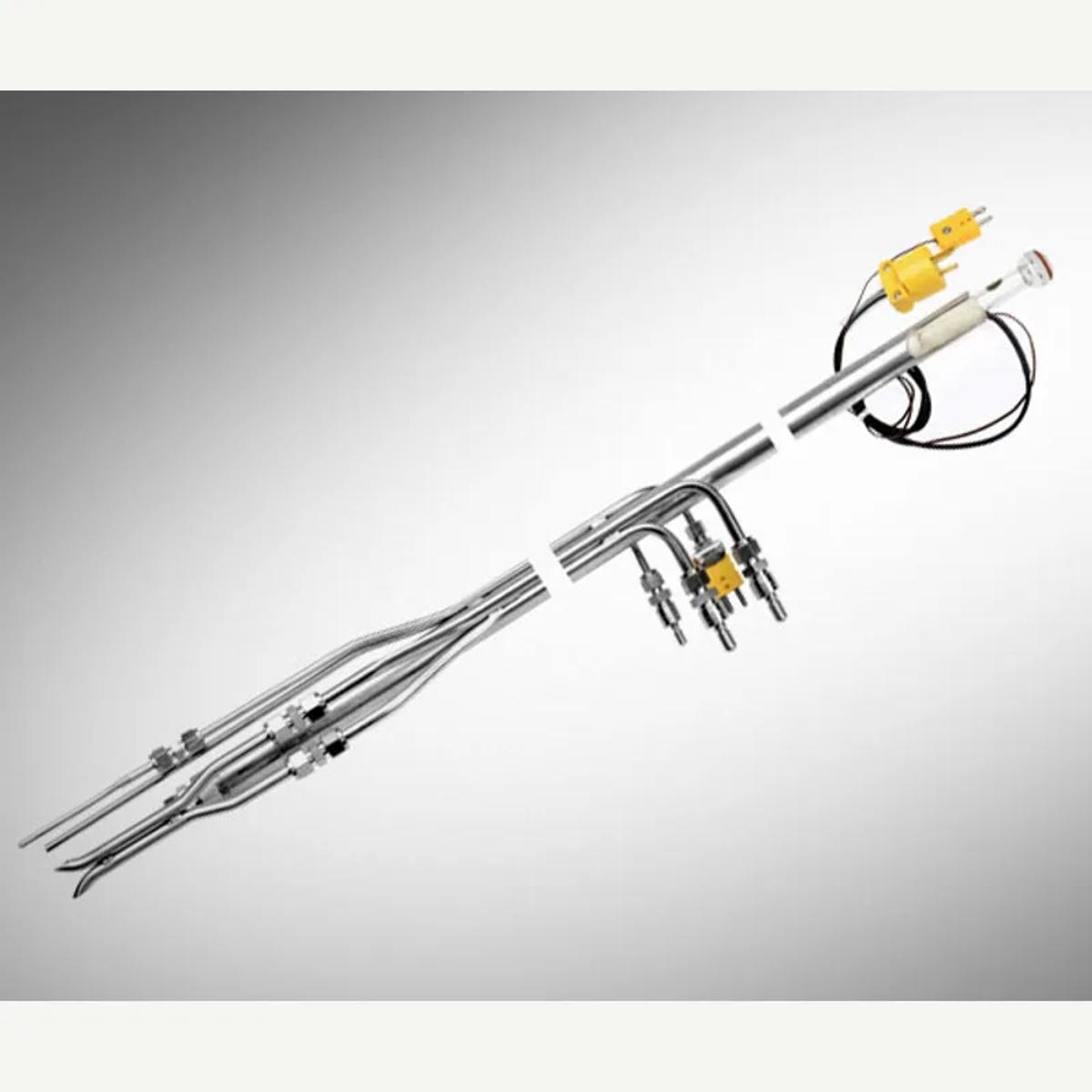

PRA-P(XX) Pyrex Probe Assemblies
MethodsM23
Probe assemblies with Pyrex liners are precision made, modular assemblies that include the probe sheath, Pyrex liners, and heating mantles. There are many configurations and materials that will accommodate any isokinetic method or condition that may be present. All probe assemblies are ordered by effective length which is one foot shorter than overall length. The Nozzle is the only item that is not included in the ESC Probe Assembly.
Features
- Pyrex™ Liner
- Ball and O-Ring
- Heating Mantle
- Stainless Steel Sheath
- Pitot (Type S) Modular Tip
- Thermocouple
- ORSAT Line
Specifications
- Pyrex™ Liner#28 Ball with Silicon O-Ring
- Heating Mantle 110 Volts (Optional 220 input for mantle available)
- Type S Modular Pitot Tip with 3/8" Stainless Steel Male Quick Connects
- Type K Stack Thermocouple
- 5/8" Stainless Steel Nozzle Union
- ORSAT Line (standard) with 1/4" Stainless Steel Male Quick Connect
- 1" Stainless Steel Sheath
- Probe Assembly Effective Lengths Available from 2' to 12'
- For Longer Lengths Please Call
- *All Probe Assembly Part #s Begin with PRA Followed by: Type of Liner then Effective Length
- PRA-P02 2' Effective Length to
- PRA-P12 12' Effective Length
PRA-P(XX)-V Probe Assembly with 220v heating mantle
For long length probes 1.75" or 2" oversheaths are recommended for rigidity or applications with high negative or positive pressure, or highly toxic stacks.
