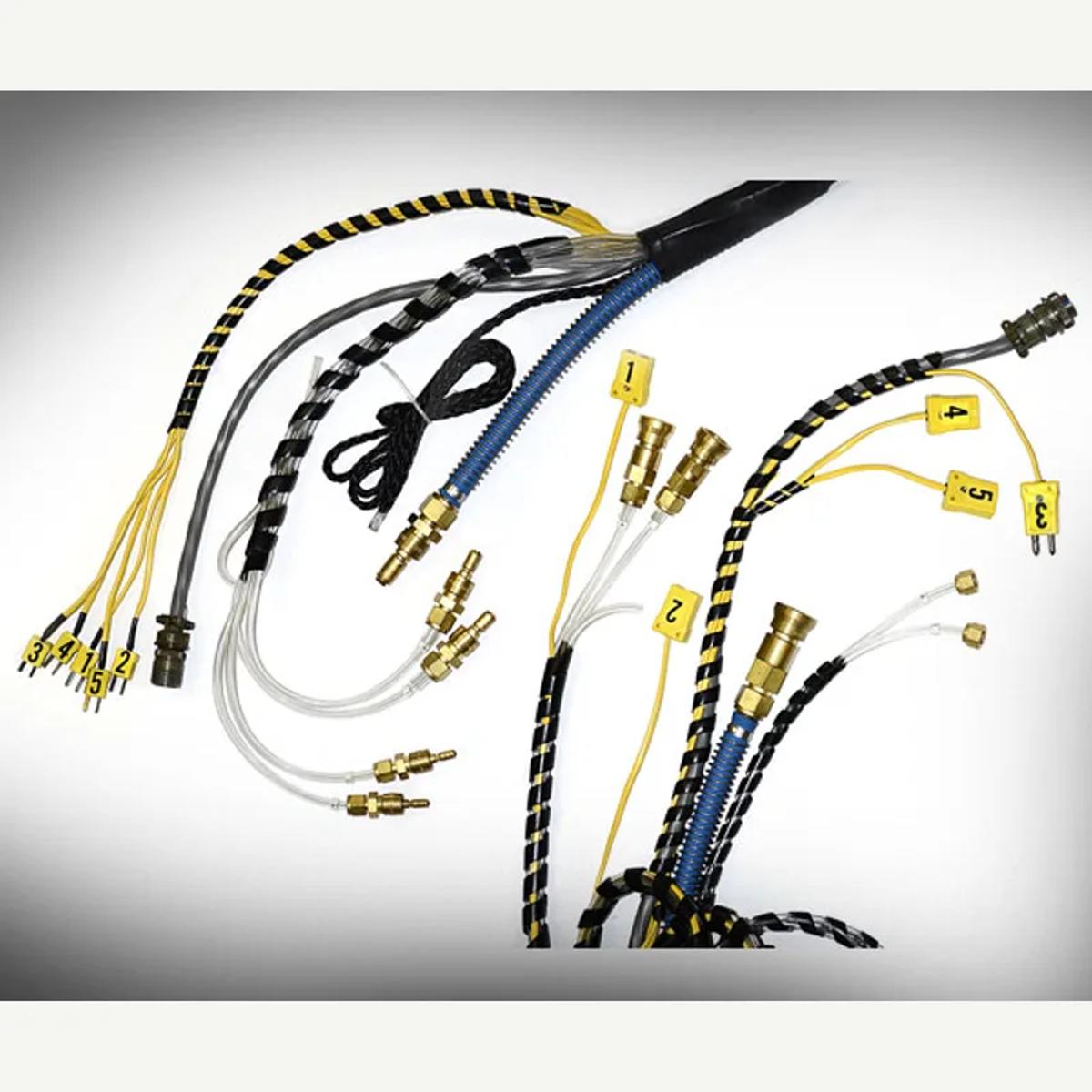

UC-(XXX)-A Umbilical Cable
The UC-(XXX)-A Umbilical Cable is designed exclusively for the ESC A-2000 auto isokinetic sampling system. It utilizes additional pressure lines to accommodate the auto pressure sensing function of the venturi. 25 ft. is the standard length but umbilicals are available in various lengths. See the specifications section to identify your product. (click on any image to enlarge)
Features
- 5 Pressure Lines - 4 With Quick Connects With 1 Extra
- 5 Thermocouple Lines
- (Mini thermocouple male plugs will fit in regular type K female sockets)
- Power Line
- Strain Relief Cord
- Flexible Sheath
- Gas Line With Quick Connect
Umbilical Cable Sample Lines are available in 25, 50, and 100 foot lengths
Specifications
- Specify the length when ordering
- Flexible Sheath
- Nylon Cord Strain Relieve on Both Ends
- (2) Positive Pressure Lines
- (2) Negative Pressure Lines
- (1) Axillary Pressure Line for Orsat Application
- (2) 3/8" Brass Quick Connects, Male
- (2) 3/8" Brass Quick Connects, Female
- (2) 1/4" Brass Quick Connects, Male
- (2) 1/4" Brass Nuts and Ferrules for Venturi Connection
- (6) Type K or Mini Thermocouple Male Plugs
- (one thermocouple is Male to Male)
- (4) Type K Thermocouple Female Sockets
Options:
- UC-050-A 50' Umbilical Cable for the Auto Isokinetic Sampling System
- UC-100-A 100' Umbilical Cable for the Auto Isokinetic Sampling System
