SKU
V-S1

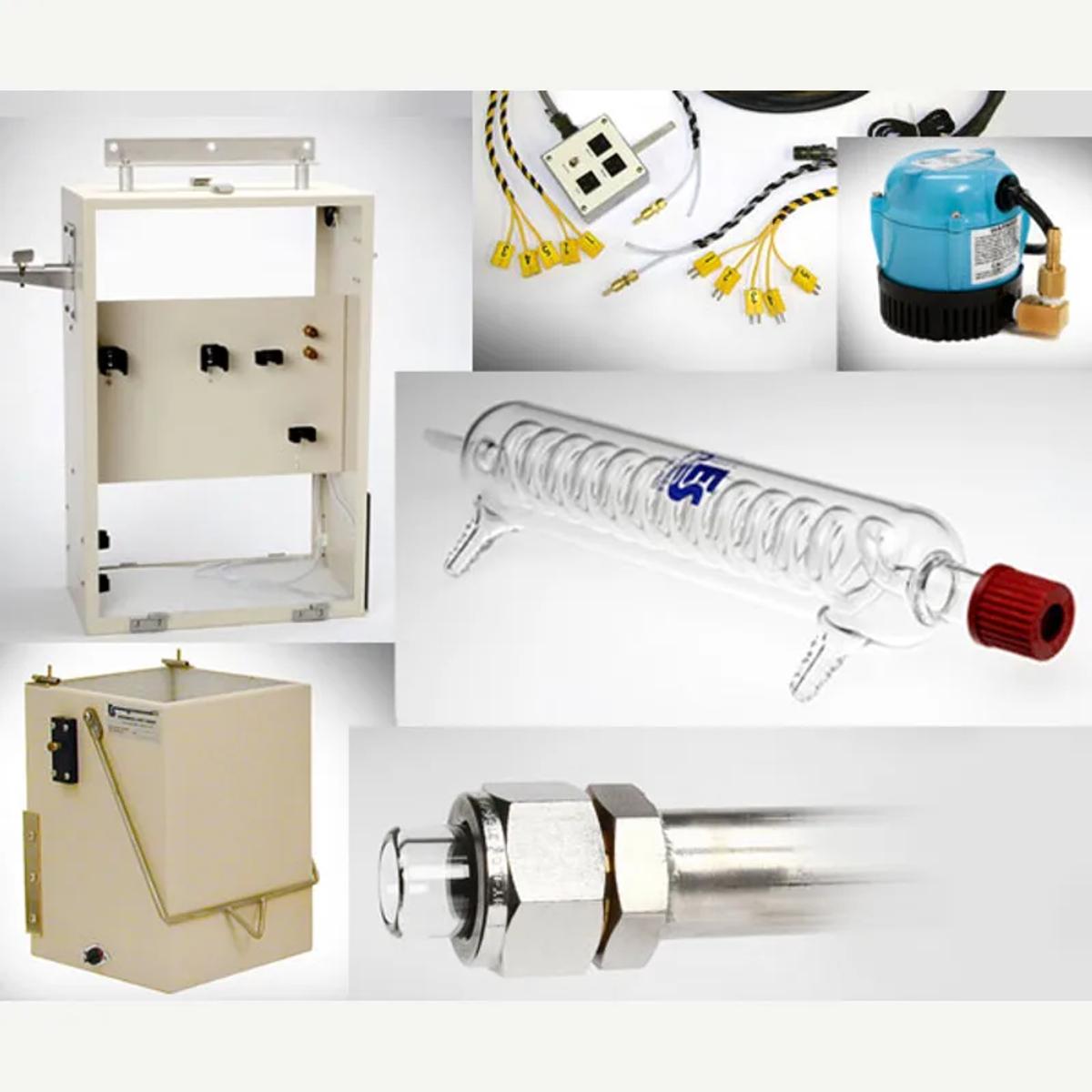

V-S1 Single VOST Sampling Assembly
MethodsVOST
The V-S1 Single VOST (Volatile Organic Sampling Train) Sampling Assembly is used in conjunction with the UNI-VOS-ACD Low Flow Console (not included) to perform Methods 0030, 0031, and 0040. The Volatile organic compounds in the sample are passed through a Pyrex coil condenser followed by cartridges with adsorbent material. The V-S1 system uses a single glassware set.
Features
Component Parts Include:
- Vost Sample Caddie
- 3’ Heated Pyrex Probe Assembly (for Vost)
- 3’ Effective length Pyrex Probe Liner, 8mm with Cup (2 included)
- Single Glassware Set
- 25" Low Flow Umbilical w/Connector Box
- Coolant Recirculating Pump
- 4 Impinger Cold Box
See specifications for quantities and description
Specifications
| Qty. | Part# | Description |
|---|---|---|
| 1 | V-SC | VOST Sample Caddy |
| 1 | PRAM-P03-08M | 3' Pyrex Heated Probe Assembly |
| 2 | PRLM-P03-08M | 3' Pyrex Liner w/cup & 8mm End |
| 1 | GS-V1 | Single VOST Glassware Set * |
| 1 | UC-LF-025 | 25' Low Flow Umbilical |
| 1 | M23-RC | 115V Submersible Pump |
| 1 | M5-CB04 | 4-Impinger Cold Box |
| 1 | JB-15 | Junction Box w/4 Pin Amphenol & 3 Receptacles |
- *Go To GS-V1 for Glassware Set Description
- Above Parts Available Separately
