C-3D-M05D 3-D Flow Console

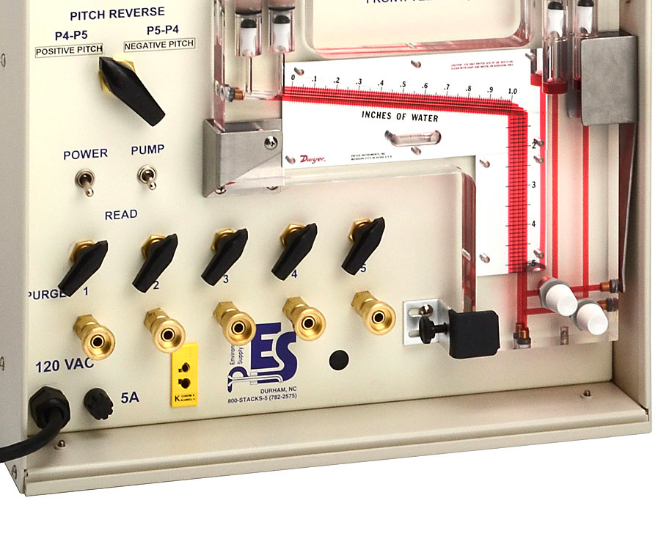

The C-3D-M05D Flow Console utilizes a 5″ dual inclined manometer for velocity and pitch angle determination and a 0.25″ inclined manometer for fine pitch angle pressure reading. The console includes a purge pump for reverse pressurization of all five lines together or individually to clear the lines of particulate buildup. (click on image to enlarge)

c-3d-m05d_2

Picture 3 of 3
