SKU
HG-220

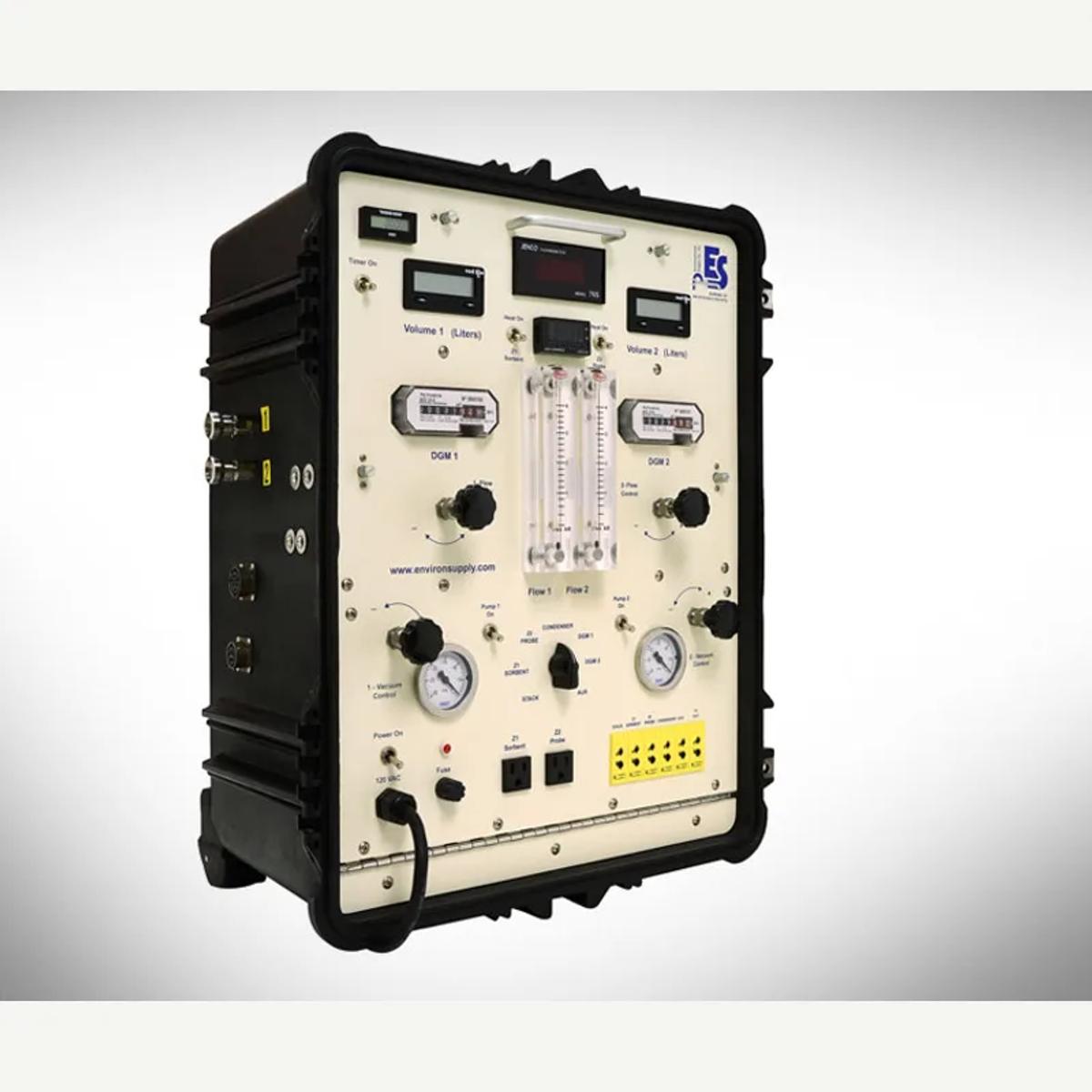

HG-220 Manual Console, Method 30B
MethodsM30B
The Environmental Supply Company HG-220 Method 30B Manual Dual Mercury Sampler is the ideal choice for short-term dual sorbent trap monitoring of flue gas mercury.
Features
The HG-220 is designed for portability and ease of use to perform RATA sampling, CEM certification, and diagnostic studies for mercury loss in air pollution control devices. This sampler is housed in a rugged, portable case that can withstand the harshest testing environment, with a hinged front panel that allows easy access to internal components. The long life, dual head diaphragm pumps are plumbed in parallel for increased flow capacity. The HG-220 also has integrated system safeguards for the protection of all internal components.
- Dual Head Diaphragm Pumps, Plumbed in Parallel
- Handles Increased Flow Capacity
- Designed to be used by a single operator
- Housed in a Rugged, Watertight, case
- Contains Integrated System Safeguards
- Hinged Front Panel for easy access
- Side-mounted connections
- Acid scrubbers on inlets
- Perfect for short-term RATA sampling and CEM certification studies.
- Compatible with ESC Heated Mercury Probes
Specifications
- Dual Head Diaphragm pumps with 12v long-life brushless DC motors
- 2 Low Flow digital dry gas meters with resettable volume display, 1 cc resolution
- Stainless steel needle valves for flow and vacuum control
- 2 Solid acrylic flowmeters (0.2 - 4 lpm)
- Weather-tight Pelican® case
- Digital elapsed timer
- Stainless steel1/4" quick connect inlets and 1/4" union outlets
- Acid scrubbers on both inlets
- Digital temperature display with 7 - channel switch
- Dual zone temperature controllers
- Stainless Steel ¼” quick connects
- Acid Scrubbers on both inlets to protect internal components
- Dual Zone temperature controller for precise sorbent and probe control
- Dimensions: 19.5” W x 13.75”D x 24”H, Weight: 52 lbs.
- Available in a Complete System or as a Component
