HG-324K

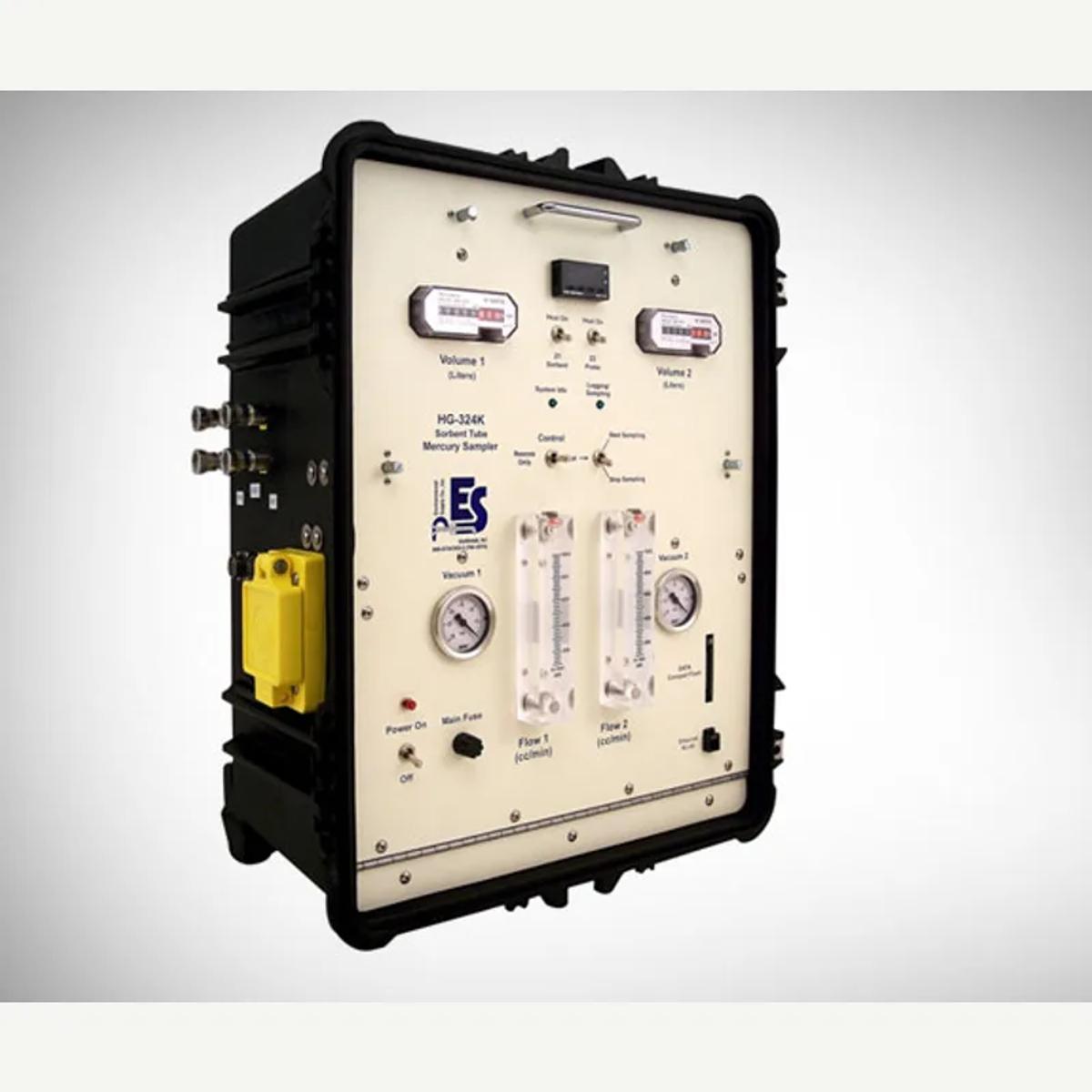

HG-324K Automatic Console
The HG-324K automated and portable console is your best choice for monitoring CEM uses an industrial data acquisition and control system with removable CompactFlash™ memory card for storing data files.
Features
The HG-324K may be connected to a plant network through Wi-Fi or direct connection to allow program control and remote data access. Dual independent flow channels are included with proportional flow control based on the CEM flow monitor or an installed pitot.
- Contains Data Acquisition and Control System
- Uses Solid State memory cards
- Wi-Fi compatible for remote control and data access from plant LAN
- Designed to be used by a single operator
- Field-tested for Reliability
- Contains Dual Flow Channels
- Real-time volume measurement
- Maintains constant flow or constant proportion to stack flow
- Perfect for CEM testing
- Dimensions: 19.5” W x 13.75”D x 24”H, Weight: 57 lbs.
- Available in a Complete System or as a Component
Specifications
- Dual Front Panel Flowmeters, 0-1 lpm
- Dual Front panel Vaccuum Gauges, 0-30 in. Hg
- Dual Low Flow Dry Gas Meters With Digital Counters
- Dual Zone Temperature Controller
- 8 16 bit Analog Inputs
- 8 Analog Outputs (0-10VDC)
- 8 16 bit Thermocouple Inputs
- 8 Counter Inputs
- 1/4" Stainless Steel Quick Connects
- Removable Compact Flash™ Memory Card
- Removable Cartridge Type Acid Gas Sorbent
- Wi-Fi Router
- Custom Software
- Quick Setup
- Real-time Feedback
- Streamlines Transducer Calibration Process
- Proportional Flow Control by 4-20 mA Signal from CEM Flow Monitor or dP from Pitot
- Wireless Network connections via RJ45 or WiFi
- Shockproof Pelican Case
- Uses CompactFlashTM memory card
- Compatible with ESC Heated Mercury Probes
- Dual front panel flowmeters (0-lpm) for visual flow indication
- Dual front panel vacuum gauges (0-30 in. Hg)
- Dual dry gas meters
- Dual zone temperature controllers for probe heat
- Rugged industrial automated controller includes 8-16 bit analog inputs, 8 analog outputs (0-10VDC), 8-16 bit thermocouple inputs, 8 counter inputs
- Quick-turn Amphenol connectors for probe power, thermocouple input and external flow signal input
- ¼” stainless steel quick connectors
- Compact Flash memory card for data files
- Proportional flow control by external 4-20 mA signal from CEM flow monitor
- Automatic recording points at user-defined intervals
- Automatic program pausing at user-defined temperature conditions
