HGK-R90D

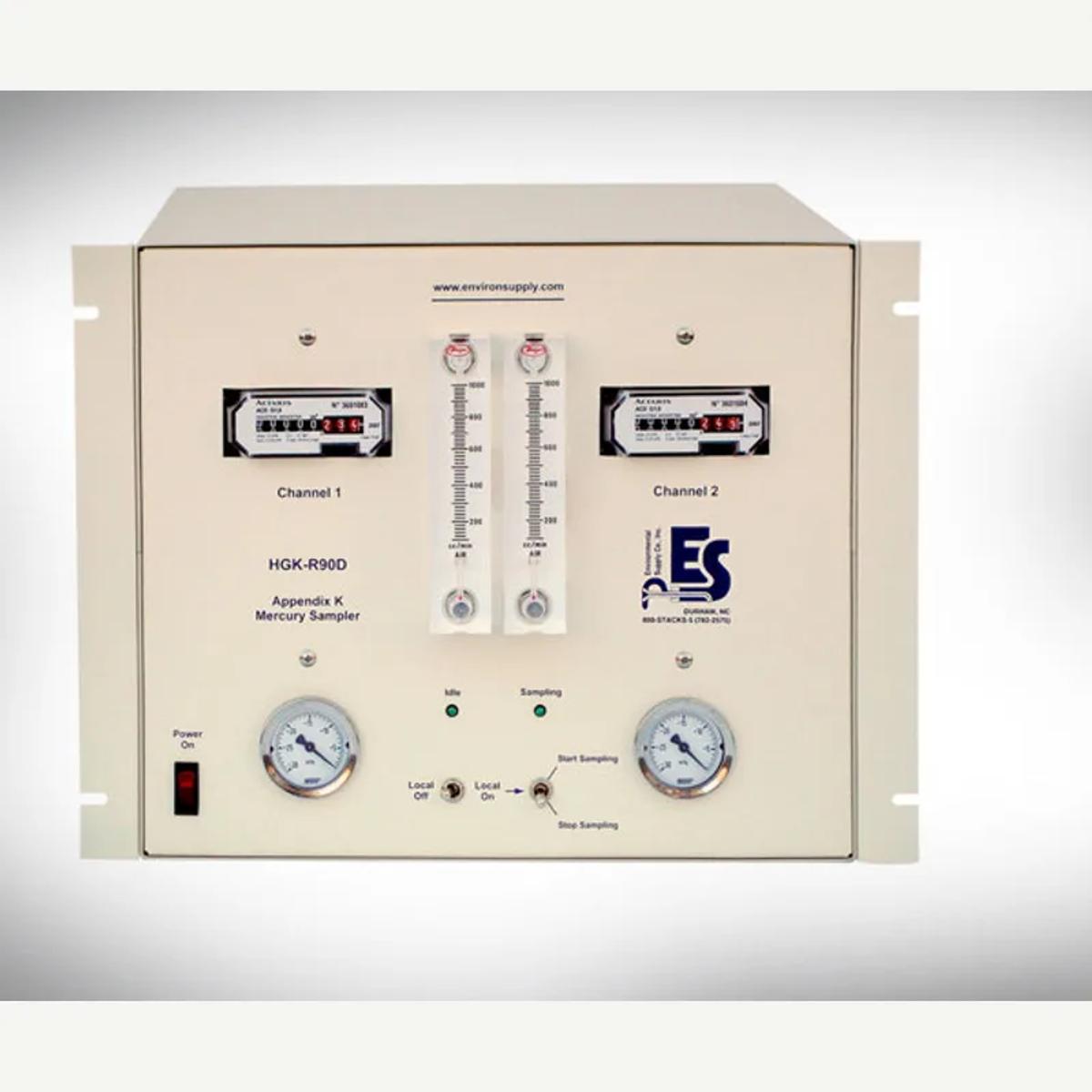

HGK-R90D Automated Rack-mount Controller
The HGK-R90D CEM controller for appendix K of Part 75 Mercury emissions provides proven reliability in sorbent trap monitoring of flue gas mercury.
Features
The HGK-R90D Automated CEM Controller monitors mercury emissions from coal-fired sources as specified in PS12-B. The controller mounts in a standard 19’ rack and can be placed in the CEM shelter or in our HGK-PFI platform mounted enclosure, Two independent flow channels are controlled in proportion to the CEM flow monitor automatically. The controller may be connected to a plant network for remote program control and data access. MODBUS® protocol is utilized for real-time data transfer and alarming to the plant CEM DAHS.
Specifications
- 2 Diaphragm pumps with long-life brushless DC motors
- Dual solid acrylic flowmeter (0-1 lpm) for visual flow indication
- Dual front panel vacuum gauges
- Dual low flow dry gas meters with digital counters for real-time volume measurement
- Automated controller
- 8 16-bit analog inputs
- 8 Analog outputs
- 8 16-bit thermocouple inputs
- 8 Counter inputs
- RJ-45 connection for remote networking and CEM DAHS connectivity
- Complete user access and control via remote computer
- Proportional flow and data logging per Appendix K
- Real-Time data transfer to CEM DAHS via MODBUS® protocol
- Flow signal input via direct 4-20 mA or through MODBUS® from CEM DAHS
- User configurable warning and critical alarms
- Alarm output via direct connection and/or MODBUS® to CEM DAHS
- Inputs for Uninterruptible Power Supply (UPS) and process offline.
