SKU
M26-S1-H

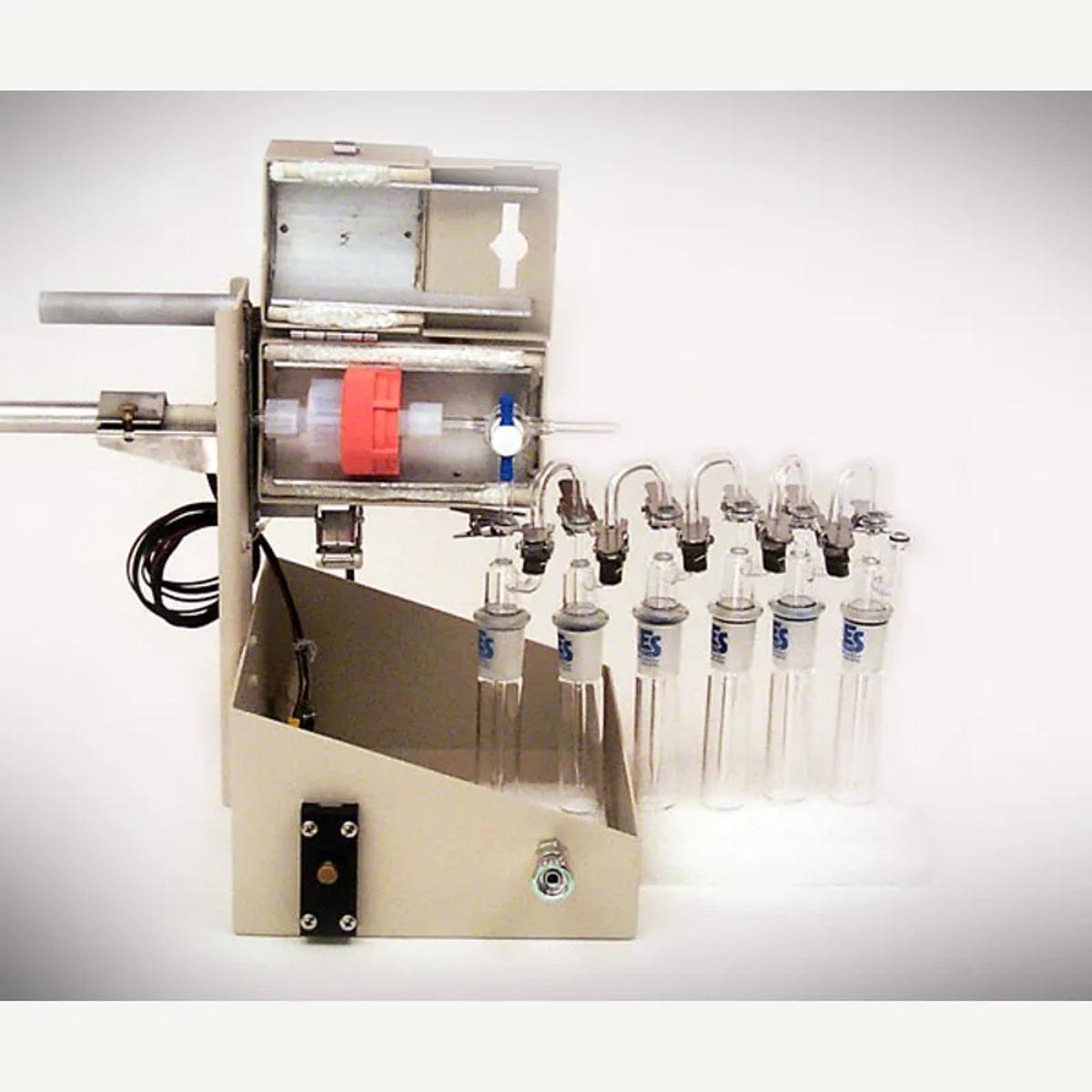

M26-S1-H Method 26 Sampler
MethodsM26
The M26-S1-H Method 26 (HCL) Sampling System is for the determination of hydrogen chloride emissions from stationary sources. The sampler comes with miniature impingers, heated probe assembly, and a modular clamshell oven. Add to the sampler the Environmental Supply UNI-VOS-ACD Low Flow Control Console to make the system complete.
Features
- Miniature Impingers
- 25' Low Flow Umbilical
- Pyrex Heated Probe Assembly
- Additional Pyrex Liners Included
- Insulated Glassware Tray
- And More
Specifications
Sampler Components
| Column 1 | Column 2 | Column 3 |
|---|---|---|
| Qty. | Part # | Description |
| 1 | M6-SC | Sample Caddy / Probe Support |
| 1 | M6-CB | Insulated Glassware Tray |
| 1 | PRAM-P03-06 | Heated 3' Probe Assembly 3/8" SJ with Cup |
| 2 | PRLM-P03-06 | 3' Pyrex Liner, 3/8" SJ with Cup |
| 1 | GSM-26B | Method 26 Midget Glassware Set |
| 1 | UA-12 | Umbilical Adapter |
| 1 | UC-LF-025 | 25' Low Flow Umbilical |
| 1 | M6-PPL | Hand Bulb, Purge Pump |
| 1 | M26-VFH | Filter Oven with Valve |
| 1 | JB-15 | Junction Box with 4 Pin Amphenol |
Above Parts Sold Separately
