SKU
M6-S1

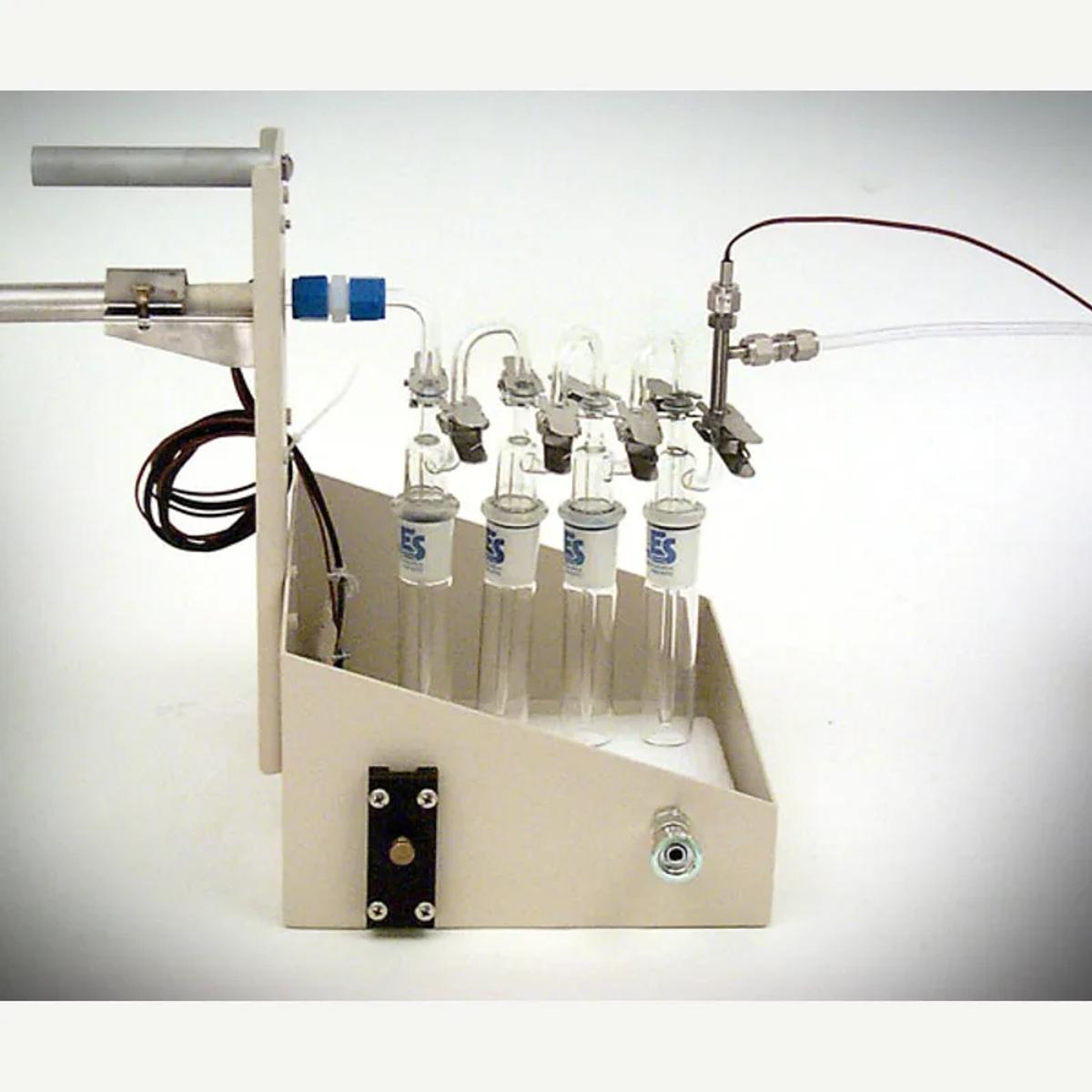

M6-S1 Method 6 Sampling Train
MethodsM6
The M6-S1 Method 6 Sampling Train is an efficient low flow, non-isokinetic system for extracting a gas sample from the stack and separating the sulfuric acid mist, including sulfur trioxide, from the sulfur dioxide fraction that is to be measured using barium-thorin titration. The UNI-VOS-ACD sampling console is the preferred console, sold separately, for use with this train.
Features
- Miniature, Pyrex lined, heated probe assembly
- Midget sample caddy with insulated glassware tray
- Midget glassware set
- Impinger outlet adapter with thermocouple
- UC-25LF-025 umbilical with connector box
Specifications
| Qty. | Part # | Description |
|---|---|---|

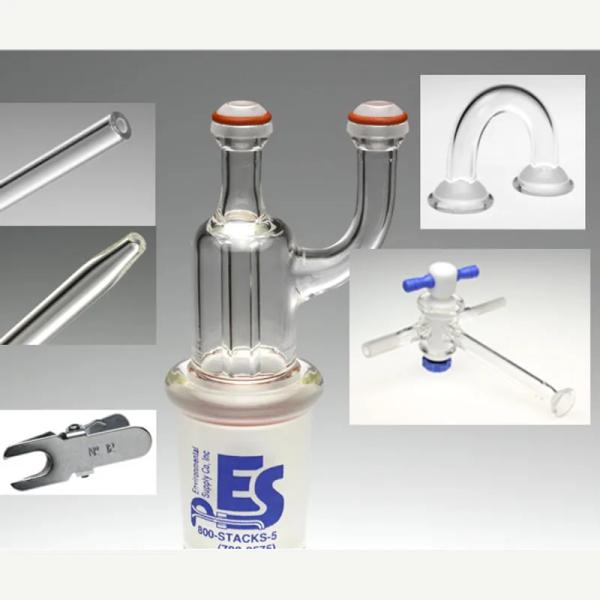

| 1 | GSM-06B | Method 6 Glassware Set |
| 1 | UA-12 | Umbilical Adapter |
| 1 | UC-LF-025 | 25' Low Flow Umbilical with Brass QC |
| 1 | M6-SC | Method 6 Sample Caddy with Probe Support |
| 1 | M6-CB | Insulated Glassware Tray |
| 1 | PRSM-S03 | 3', 3/4" Stainless Steel Probe Sheath with 5/8" cap |
| 3 | PRLM-P03-06 | 3' Pyrex Probe Liner with Cup |
| 1 | M6-PPL | Hand Bulb Pump Probe Purge |
| 1 | PRMM-035-3/8 | 3' x 3/8" Diameter Miniature Heater |
| 1 | PFA-SU6 | 3/8" Straight PFA Union |
| 1 | JB-15 | Junction Box with 4 Pin Receptacle |
All of the above parts are available separately
