M5-A-S1

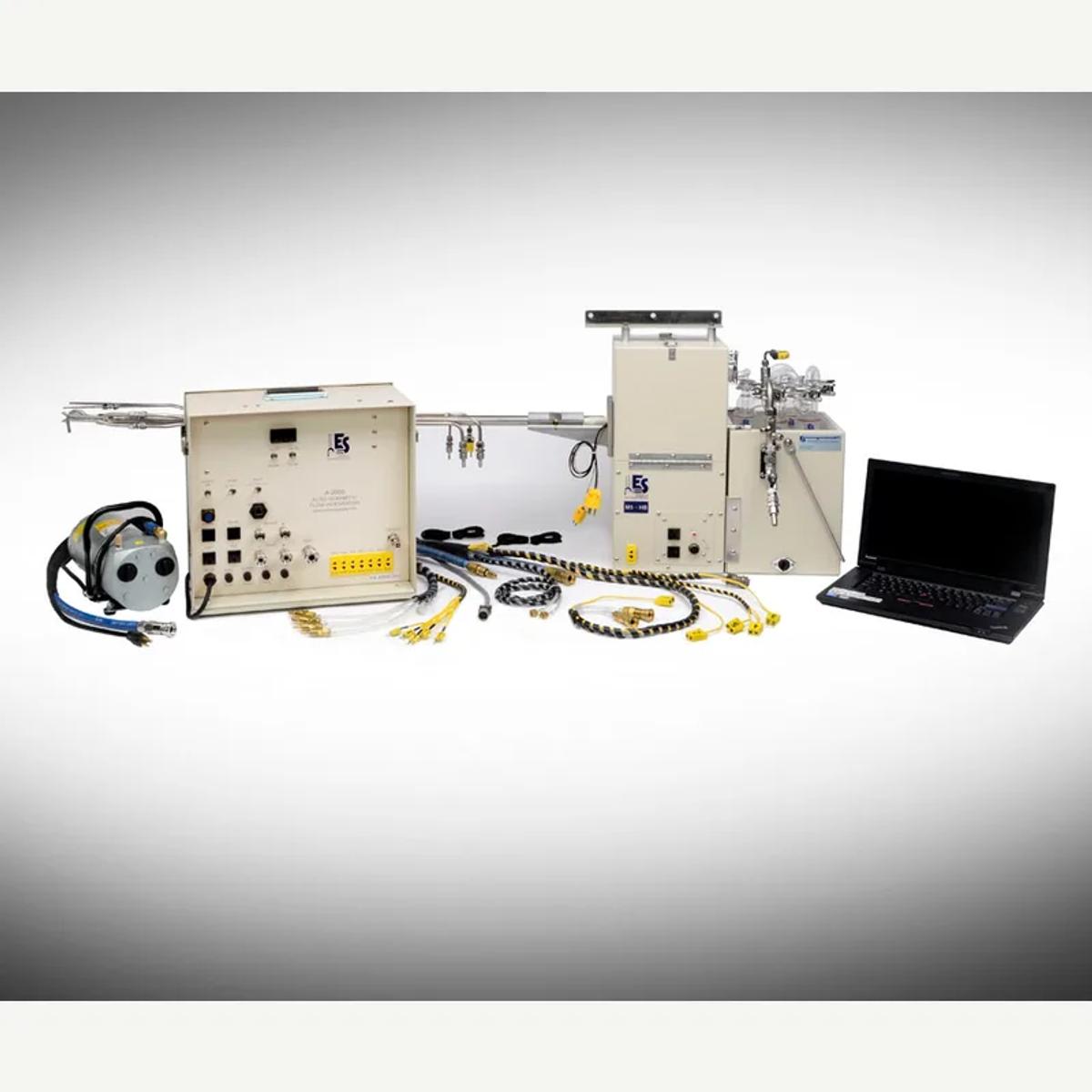

M5-A-S1 (Basic)
MethodsM5
The M5-A-S1 Auto Isokinetic system is designed with continuous auto data logging capabilities and uses a Venturi to monitor and signal pressure adjustments automatically. The heart of the system is the A-2000 console and utilizes field tested probe assemblies, liners, and sample cases already in use by testers. The M5-A-S1 also employs a Carbon Vane Oilless Pump. The Auto Isokinetic M5-S1 system reduces manpower and operator error while expediting reporting.
Features
- Automated Sampling Console with Flow Control and Carbon Vane Oilless Pump
- Sample Cases, including Hot Box and Impinger Box
- Stainless Steel Lined Probe Assembly and Nozzles
- Umbilical with an Adapter and Venturi Pressure Taps
- A Single Set of Glassware
- Clean Out Brush
- Nomograph or Calculator with Custom Software
- Suspension Rail System
Specifications
| Qty. | Part# | Description |
|---|---|---|
| 1 | A-2000 | Automated Console |
| 1 | P0523-101Q | Pump with Stainless Quick Connects |
| 1 | M5-SC6 | Modular Sample Case, Hot Box and 6 Impinger Cold Box |
| 1 | PRA-S5 | Heated Stainless Steel LIned Probe Assembly, 5' Effective |
| 2 | PRL-P5 | Pyrex Probe Liner, 5' Effective, #28 Ball With O-Ring |
| 1 | US-25-A | Umbilical Cable 25' with 5 pressure lines, 5 TC lines, and Power Line |
| 1 | M5-UA-A | Umbilical Adapter with Venturi Taps |
| 1 | PRNS-S | Stainless Steel Nozzle Set, 7 sizes 1/8" - 1/2" |
| 1 | GSBO-3 | Single Glassware Set, Precision Ground Ball Joint, O-Ring, (no case) |
| 1 | GF3-107 | Glass Fiber Filters, Box of 100 |
| 1 | M5-CK7 | Probe Brush |
| 4 | M5-CK5 | Probe Brush Extension Rod, (18") |
| 1 | A-2000-PC | PC Compatible Laptop With Custom Software |
| 2 | M5-SRS-5 | Suspension Rail System |
