SKU
M5-S1
M5-S1 (Basic)
MethodsM5

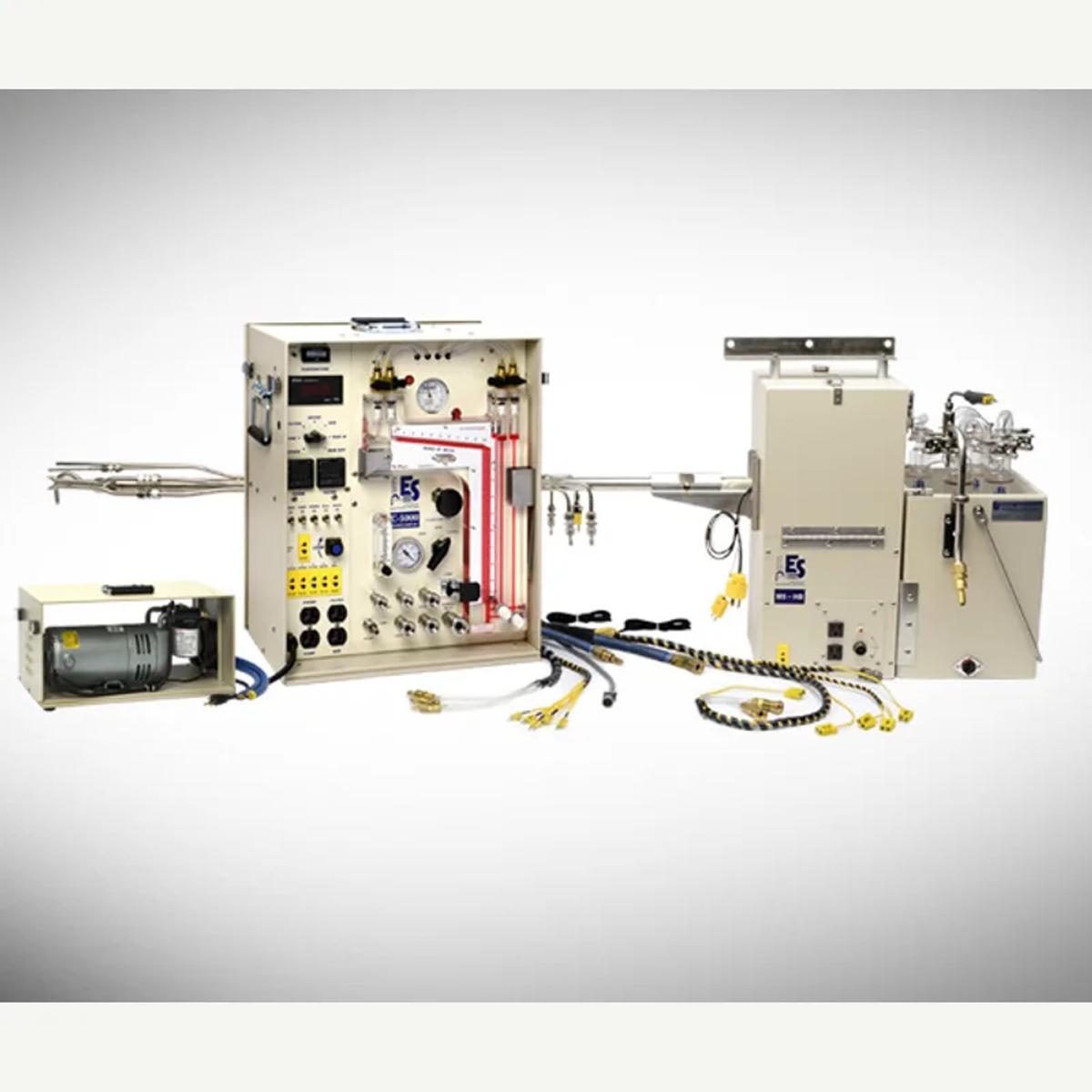

The M5-S1 Method 5 Basic Isokinetic sampling system provides every essential piece of apparatus needed to perform Method 5 runs.
Features
- Sampling Console with Pump
- Sample Cases, including Hot Box and Impinger Box
- Stainless Steel Lined Probe Assembly and Nozzles
- Umbilical with an Adapter
- A Single Set of Glassware
- Clean Out Brush
- Nomograph or Calculator with Custom Software
- Suspension Rail System
Specifications
Qty. I Part # I Description
- (1) C-5000 Console with Brass QC
- (1) M5-HB Heated Filter Box ,115V/700W
- (1) M5-CB04 4 Impinger Cold Box
- (1) PRS-S05 Stainless Steel Probe Sheath, 5 Foot Effective Length
- (1) PRL-S05 Stainless Steel Probe Liner, 5 Foot Effective Length
- (1) PRM-05 Probe Heating Mantle, 5 Foot Effective Length
- (2) PRL-P5 Pyrex Probe Liner, 5' Effective, #28 Ball With O-Ring
- (1) P0523-OF-BR Open Frame Pump with Brass Quick Connects
- (1) UC-025 Umbilical Cable, 25'
- (1) M5-UA-X Umbilical Adapter / No Check Valve
- (1) PRNS-S Stainless Steel Nozzle Set, 7 sizes 1/8" - 1/2"
- (1) GSBO-3 Single Glassware Set, Precision Ground Ball Joint, O-Ring, (no case)
- (1) GF3-107 Glass Fiber Filters, Box of 100
- (1) M5-CK7 Probe Brush
- (4) M5-CK5 Probe Brush Extension Rod, (18")
- (1) M5-PC-Ti83 Ti83 Calculator with Isokinetic Calculations Programs
- (2) M5-SRS-05 Suspension Rail System
OPTIONS:
M5-S1-DMV The Basic Method 5 System with Digital Dry Gas Meters, Metric Scales on the Inclined Manometer, and Wired for 220 Volts
M5-S1-M The Basic Method 5 System with Metric Dry Gas Meters, and Metric Scales on the Inclined Manometer
M5-S1-MV The Basic Method 5 System with Metric Dry Gas Meters, Metric Scales on the Inclined Manometer, and Wired for 220 Volts
