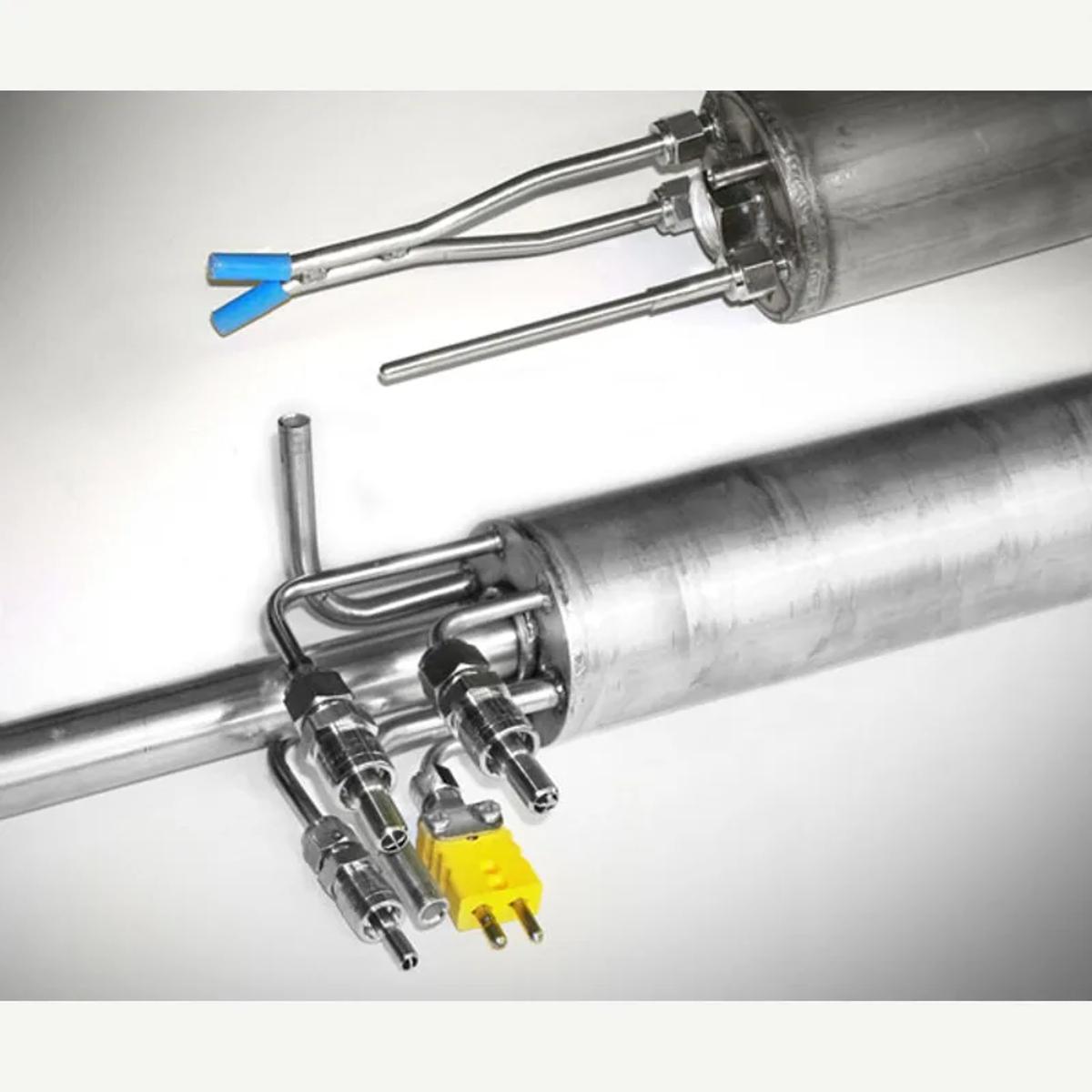

PRWC-(XX) Water Cooled Probe
The PRWC-(XX) Water Cooled Probe is just that. Marked inlet and outlet ports are tested and sealed into a welded 2.875 inch oversheath to provide additional cooling in the probe assembly.
Features
- Available With Inconel or Quartz Liner
- 3 Foot to 12 Foot Effective Lengths
- Stainless Steel Quick Connects
- Type K Thermocouple
Please Call to Specify the Desired Length
Specifications
- 2.875 ” Water Jacket
- ¼” Type S Pitots
- Stack Thermocouple (type K)
- Orsat Line
- PRWC-I03 3 ft. Effective Length Inconel Water Cooled Probe to
- PRWC-I12 12 ft. Effective Length Inconel Water Cooled Probe
- PRWC-Q03 3 ft. Effective Length Quartz Liner Water Cooled Probe to
- PRWC-Q12 12 ft. Effective Length Quartz Liner Water Cooled Probe
Options:
Water Cooled Probes Available With 220v Heating Mantle
