SKU
PRS-S(XX)

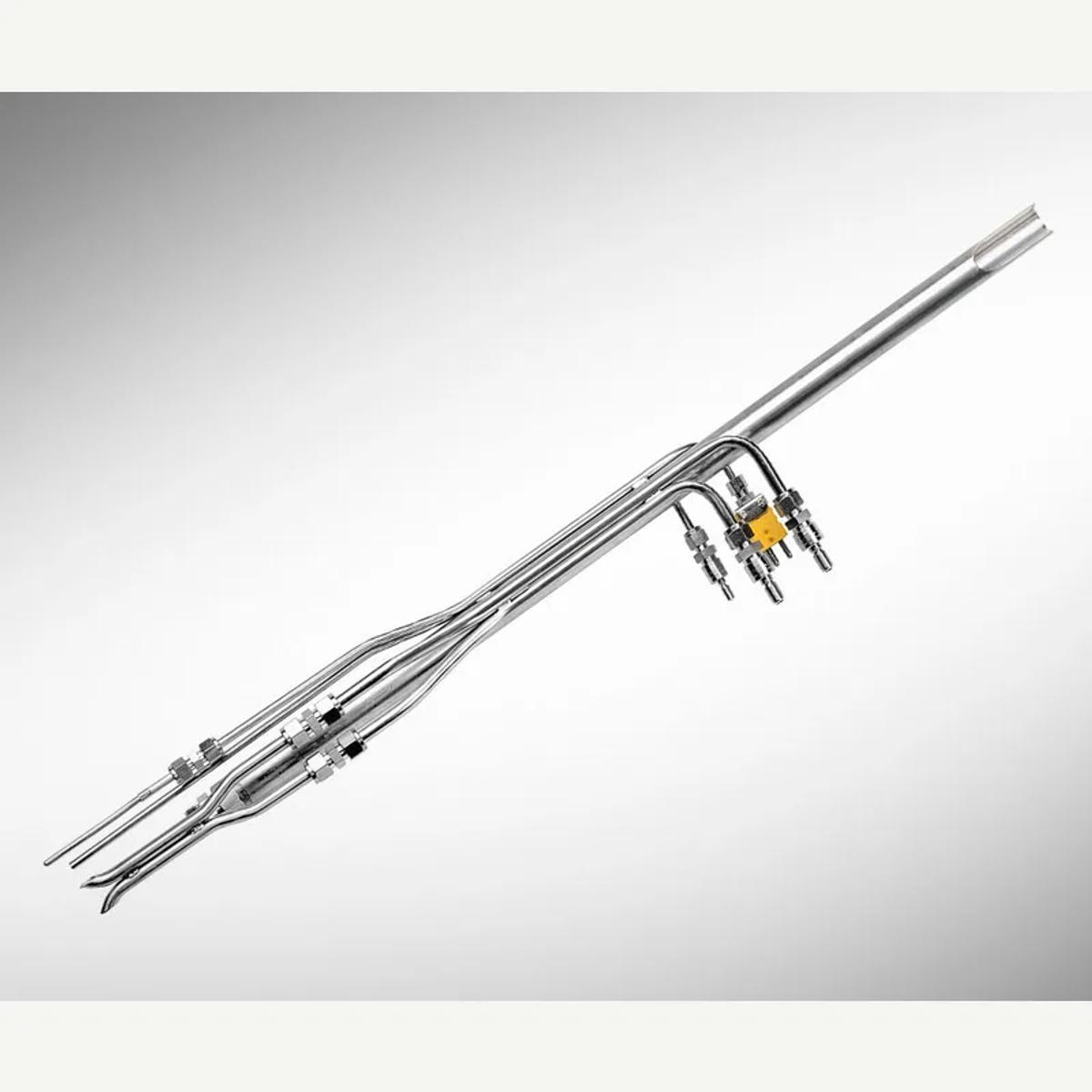

PRS-S(XX) Stainless Steel Probe Sheaths
Stainless Steel Probe Sheaths are precision made from 316 steel alloy for standard applications. Each sheath includes a modular pitot tip, ORSAT line, quick connects, a stack thermocouple and a nozzle union. All probe sheaths are ordered by effective length which is one foot shorter than overall length.
Features
- Stainless Steel Sheath (notched to accommodate a heating mantle)
- Pitot (Type S) Modular Tip
- Thermocouple
- ORSAT Line
- Quick Connects
- Nozzle Nut & Union
Specifications
- 1" Stainless Steel Alloy 316 Sheath
- Type S Modular Pitot Tip with 3/8" Stainless Steel Male Quick Connects
- Type K Stack Thermocouple
- 5/8" Stainless Steel Nozzle Union
- Orsat Line (standard) with 1/4" Stainless Steel Male Quick Connect
- Probe Sheaths Effective Lengths Available from 2' to 12'
- For Longer Lengths Please Call
- PRS-S02 2' Effective Length to
- PRS-S12 12' Effective Length
Stainless Steel Sheaths are available with only the notch and nozzle nut.
For Long Length Probes 1.75" or 2" Oversheaths are recommended for rigidity or applications with high negative or positive pressure, or highly toxic stacks.
