M5-A-S1 (Basic)

The M5-A-S1 Auto Isokinetic system is designed with continuous auto data logging capabilities and uses a Venturi to monitor and signal pressure adjustments automatically.  The heart of the system is the A-2000 console and utilizes field tested probe assemblies, liners, and sample cases already in use by testers.  The M5-A-S1 also employs a Carbon Vane Oiless Pump.  The Auto Isokinetic M5-S1 system reduces manpower and operator error while expediting reporting. (click on image to enlarge)

m5-ua-a_web

Picture 4 of 6

Related Products

C-5000 Console


CO-QC8-B-SET Brass Critical Orifice Set


Automated Sampling Console with Flow Control and Carbon Vane Oiless Pump
Sample Cases, including Hot Box and Impinger Box
Stainless Steel Lined Probe Assembly and Nozzles
Umbilical with an Adapter and Venturi Pressure Taps
A Single Set of Glassware
Clean Out Brush
Nomograph or Calculator with Custom Software
Suspension Rail System

Qty.
  Part#Description

1  A-2000Automated Console
1  P0523-101QPump with Stainless Quick Connects
1  M5-SC6Modular Sample Case, Hot Box and 6 Impinger Cold Box
1  PRA-S5Heated Stainless Steel LIned Probe Assembly, 5' Effective
2  PRL-P5Pyrex Probe Liner, 5' Effective, #28 Ball With O-Ring
1  US-25-AUmbilical Cable 25' with 5 pressure lines, 5 TC lines, and Power Line

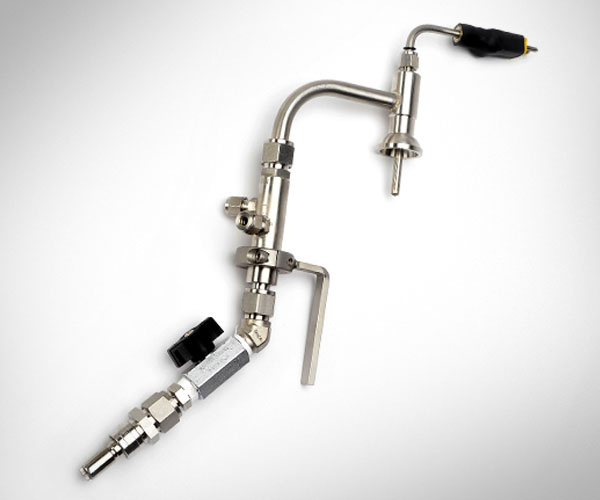

1  M5-UA-AUmbilical Adapter with Venturi Taps
1  PRNS-SStainless Steel Nozzle Set, 7 sizes 1/8" - 1/2"
1  GSBO-3Single Glassware Set, Precision Ground Ball Joint, O-Ring, (no case)
1  GF3-107Glass Fiber Filters, Box of 100
1  M5-CK7Probe Brush
4  M5-CK5Probe Brush Extension Rod, (18")
1  A-2000-PCPC Compatible Laptop With Custom Software
2  M5-SRS-5Suspension Rail System
