M5-S2 (Professional)

The M5-S2 Method 5 Professional Isokinetic sampling system provides the essential apparatus needed to perform Method 5 runs along with additional equipment for calibration, cases for added protection and transport, and additional glassware. (click on image to enlarge)

dsc0372r

Picture 4 of 6

Related Products

C-5000 Console

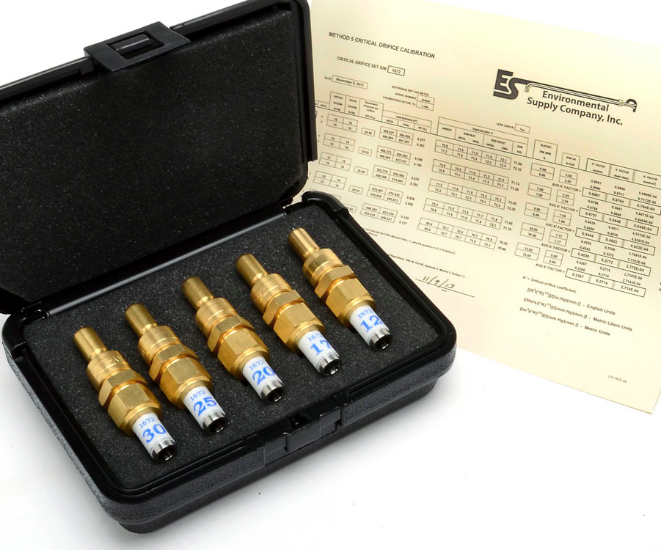

CO-QC8-B-SET Brass Critical Orifice Set


Sampling Console with Enclosed Housing Pump
Transport Cases for Console and Pump
Brass Critical Orifice Set for Console Calibration
Sample Cases, including Hot Box and Impinger Box
Stainless Steel Lined Probe Assembly
Stainless Steel Nozzles
Umbilical with an Adapter
Double Set of Method 5 Glassware in a Transport Case
Clean Out Brush
Nomograph or Calculator with Custom Software
Suspension Rail System

Qty.  I      Part #      I         Description

(1)   C-5000                      Console with Brass QC
(1)   M5-CTC                    Transport Case for Method 5 Console
(1)   CO-QC8-B-SET        Brass Critical Orifice set
(1)   M5-HB                       Heated Filter Box ,115V/700W
(1)   M5-CB06                   6 Impinger Cold Box
(1)   PRS-S05                   Stainless Steel Probe Sheath, 5 Foot Effective Length
(1)   PRL-S05                    Stainless Steel Probe Liner, 5 Foot Effective Length
(1)   PRM-05                     Probe Heating Mantle, 5 Foot Effective Length
(2)   PRL-P05                    Pyrex Probe Liner, 5' Effective, #28 Ball With O-Ring
(1)   P0523-HS-BR            Pump in Closed Housing with Brass Quick Connects
(1)   M5-PTC                     Transport Case for Method 5 Console
(1)   UC-025                      Umbilical Cable, 25'
(1)   M5-UA                       Umbilical Adapter with Check Valve
(1)   PRNS-S                     Stainless Steel Nozzle Set, 7 sizes 1/8" - 1/2"
(1)  GPBO-3C                   Professional Glassware Set with Transport Case
(1)  GF3-107                     Glass Fiber Filters, Box of 100
(1)  M5-CK07                    Probe Brush
(4)  M5-CK05                    Probe Brush Extension Rod, (18")
(2)  M5-SRS-05                Suspension Rail System, 5 Foot
(1)  M5-PC-Ti83               Ti83 Calculator with Isokinetic Calculations Programs

Go to GPBO-3C for glassware set details

OPTIONS:
C-5000-S = Consoles are available with Stainless Steel Quick Connects
CO-QCB-SS-SET = Critical Orifice Set also available in Stainless Steel

M5-S2-DMV    The Professional Method 5 System with Digital Dry Gas Meters, Metric Scales on the Inclined Manometer, and Wired for 220 Volts

M5-S2-M    The Professional Method 5 System with Metric Dry Gas Meters, and Metric Scales on the Inclined Manometer

M5-S2-MV    The Professional Method 5 System with Metric Dry Gas Meters, Metric Scales on the Inclined Manometer, and Wired for 220 Volts
