SKU
PM10-2.5-SS

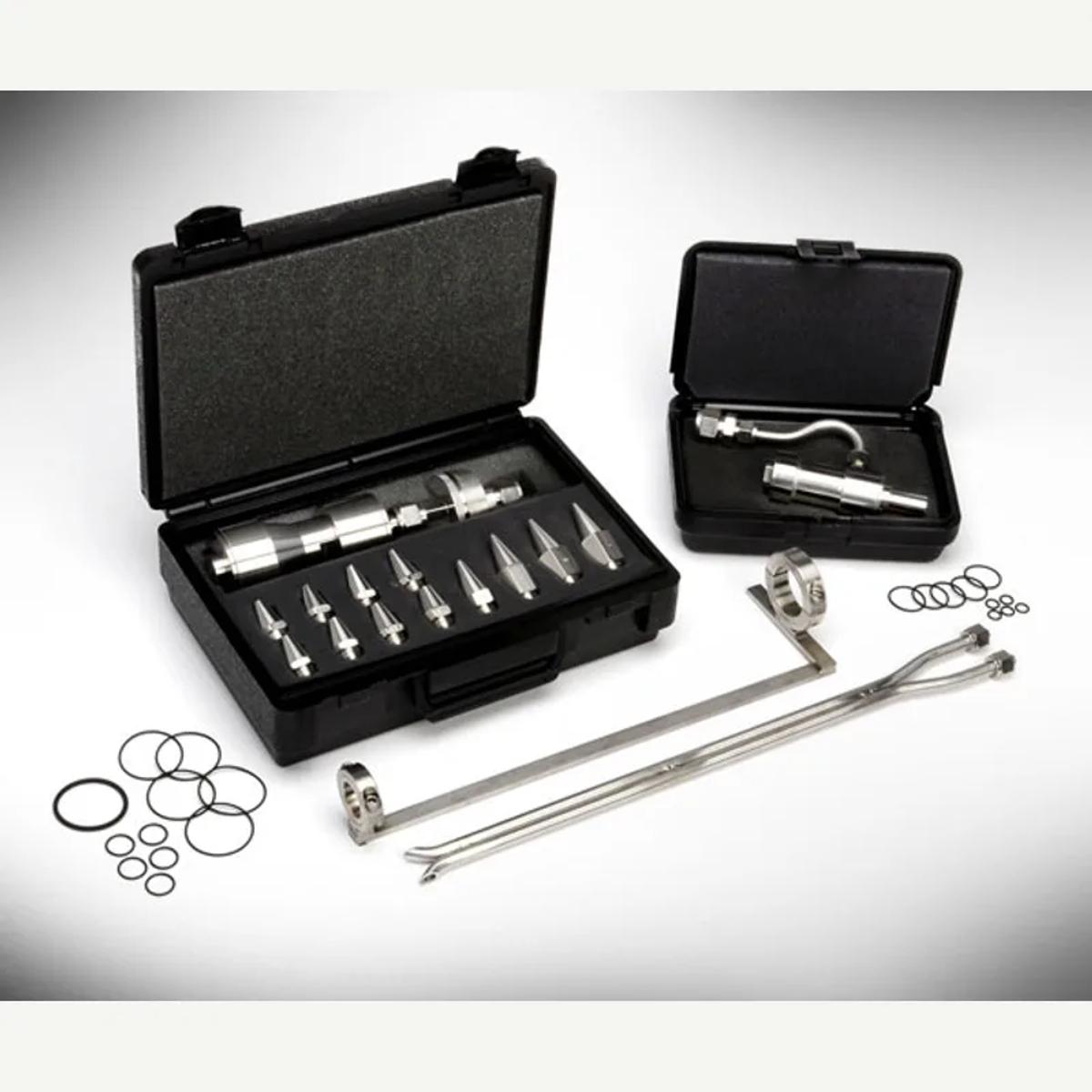

PM10-2.5-SS Combination PM10 and PM2.5 Cyclone and Nozzle Set
MethodsM201A
Each PM10-25-SS combination set includes a PM10 cyclone, 12 PM10 nozzles, a 47mm filter assembly, a PM2.5 cyclone, the cascade adapter linking device and full assembly. Also included is a modular S type Pitot tip, support brace, and O-rings.
Features
The draft method for determination of PM10 and PM2.5 specifies the procedure for simultaneous in-stack segregation of particulate matter greater than PM10, equal to or less than PM10 but greater than PM2.5, and equal to or less than PM2.5. The particulate matter is recovered from three clearly defined zones within the dual cyclone assembly.
Specifications
| Qty. | Part# | Description |
|---|---|---|
| 1 | PM10-SS | PM10 Cyclone, 12 Nozzles, and 47mm Filter, Stainless Steel |
| 1 | PM10-2.5-CA | Cascade Adapter for PM10 to PM2.5, Stainless Steel |
| 1 | PM10-2.5-BKT | PM10 & PM2.5 Support Bracket |
| 1 | PM2.5-SS-B | PM2.5 Cyclone Stainless Steel Body |
| 4 | ORG-011-V | Extra Viton O-rings |
| 6 | ORG-022-V | Extra Viton O-rings |
| 1 | PPS12-Y-PM1025 | Stainless Steel 3/8" x 18.75" Pitot Tip and Y Back |
| 1 | #Flam:50025 | Case For Cyclones and Nozzles |
| 1 | #Flam:50032 | Case For Cascade Adapter |
Above Parts Available Separately
