SKU
PM10-SS-N

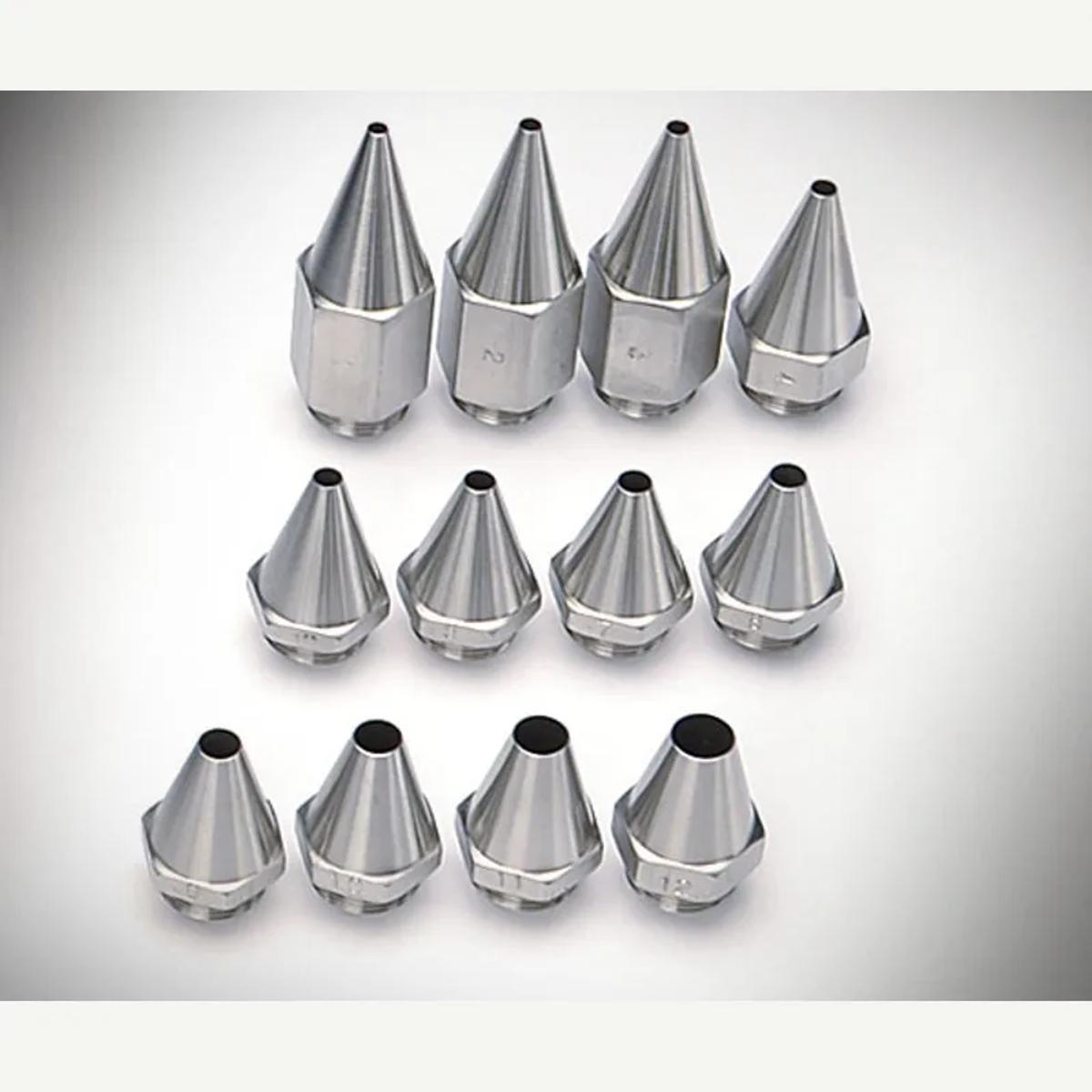

PM10-SS-N Nozzle Set
MethodsM201A
The PM10-SS-N Stainless Steel Nozzle Set works with the PM10-SS-B Cyclone Body and provides 12 nozzles of various sizes for differing flow rates.
Features
- Stainless Steel
- Precision Made
- 6 Point Collar for Easy Attachment
- Clearly Numbered
Options:
- Teflon™ Coated Nozzles Available by Special Order
- Custom Size Nozzles Available by Special Order
- Nozzles Also Available Separately
Specifications
Qty. I Part # I Description
- 1 PM10SN01-01 .125" Inlet Stainless Steel PM10 Nozzle
- 1 PM10SN01-02 .136" Inlet Stainless Steel PM10 Nozzle
- 1 PM10SN01-03 .150" Inlet Stainless Steel PM10 Nozzle
- 1 PM10SN01-04 .164" Inlet Stainless Steel PM10 Nozzle
- 1 PM10SN01-05 .180" Inlet Stainless Steel PM10 Nozzle
- 1 PM10SN01-06 .197" Inlet Stainless Steel PM10 Nozzle
- 1 PM10SN01-07 .215" Inlet Stainless Steel PM10 Nozzle
- 1 PM10SN01-08 .233" Inlet Stainless Steel PM10 Nozzle
- 1 PM10SN01-09 .264" Inlet Stainless Steel PM10 Nozzle
- 1 PM10SN01-10 .300" Inlet Stainless Steel PM10 Nozzle
- 1 PM10SN01-11 .342" Inlet Stainless Steel PM10 Nozzle
- 1 PM10SN01-12 .390" Inlet Stainless Steel PM10 Nozzle
