SKU
PM2.5-SS
PM2.5-SS PM2.5 Stainless Steel Cyclone Set
MethodsM201A

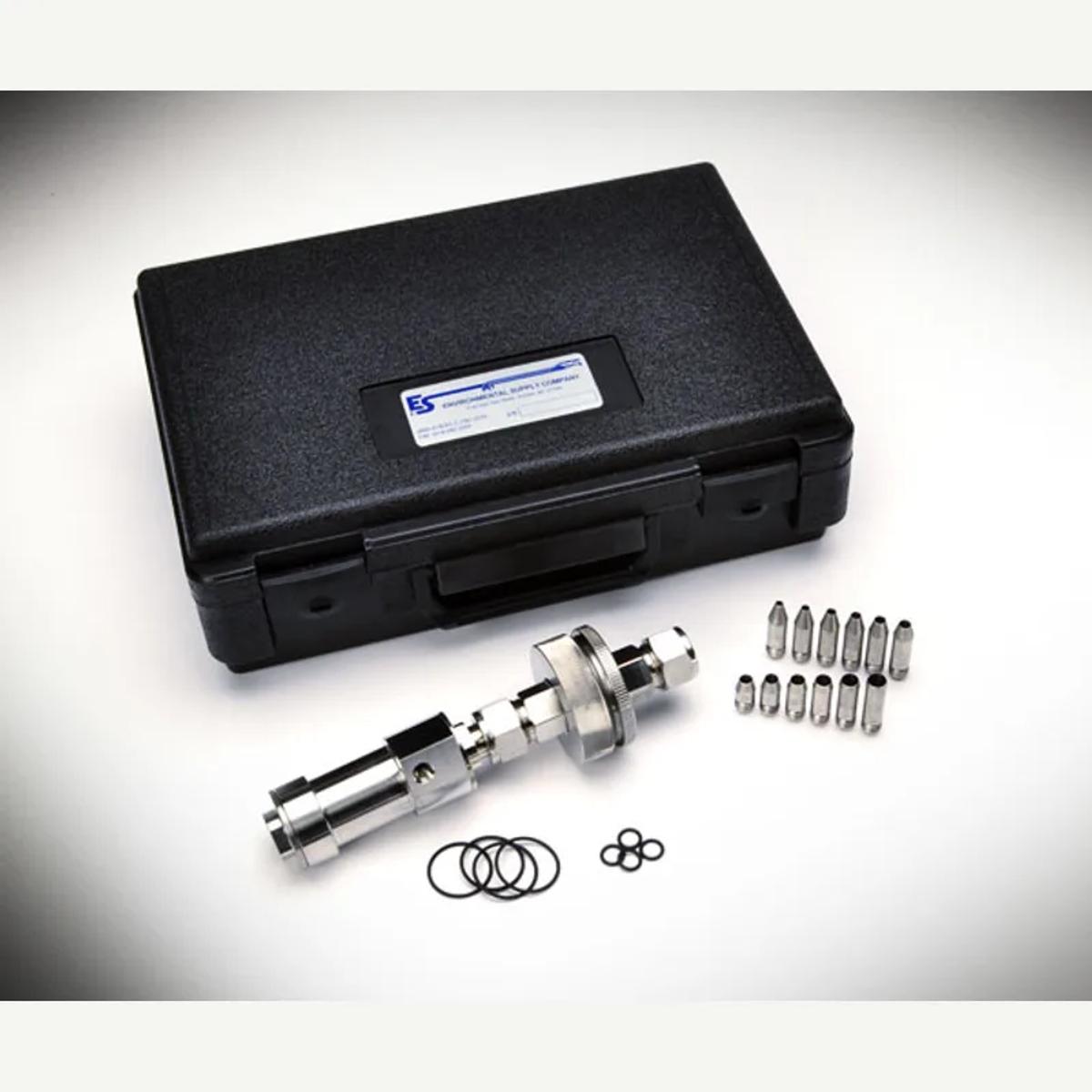

The PM2.5-SS Stainless Steel Cyclone Set is manufactured to the interior dimensional specifications defined by the USEPA in Method 201A for in-stack measurement of particulate matter, 2.5 microns and less. The set includes the cyclone body, 12 nozzles, a 47mm in-line filter holder, and O-rings in a foam-lined case.
Features
- (12) Stainless Steel Nozzles
- (1) 47mm In-line Filter Holder
- (1) Cyclone
- Foam-lined Case
- O-rings Included
- *Filter Media Not Included
Options:
- Teflon™ coated nozzles and cyclones are also available
- Different size nozzles may be substituted for existing nozzles in the set.
Specifications
Qty. I Part # I Description
- (1) PM2.5SN1-01 .125" Inlet Stainless Steel PM2.5 Nozzle
- (1) PM2.5SN1-02 .138" Inlet Stainless Steel PM2.5 Nozzle
- (1) PM2.5SN1-03 .156" Inlet Stainless Steel PM2.5 Nozzle
- (1) PM2.5SN1-04 .172" Inlet Stainless Steel PM2.5 Nozzle
- (1) PM2.5SN1-05 .188" Inlet Stainless Steel PM2.5 Nozzle
- (1) PM2.5SN1-06 .200" Inlet Stainless Steel PM2.5 Nozzle
- (1) PM2.5SN1-07 .216" Inlet Stainless Steel PM2.5 Nozzle
- (1) PM2.5SN1-08 .234" Inlet Stainless Steel PM2.5 Nozzle
- (1) PM2.5SN1-09 .253" Inlet Stainless Steel PM2.5 Nozzle
- (1) PM2.5SN1-10 .274" Inlet Stainless Steel PM2.5 Nozzle
- (1) PM2.5SN1-11 .296" Inlet Stainless Steel PM2.5 Nozzle
- (1) PM2.5SN1-12 .320" Inlet Stainless Steel PM2.5 Nozzle
(2) ORG-011-V Viton #16 O-ring
