SKU
PM10-SS

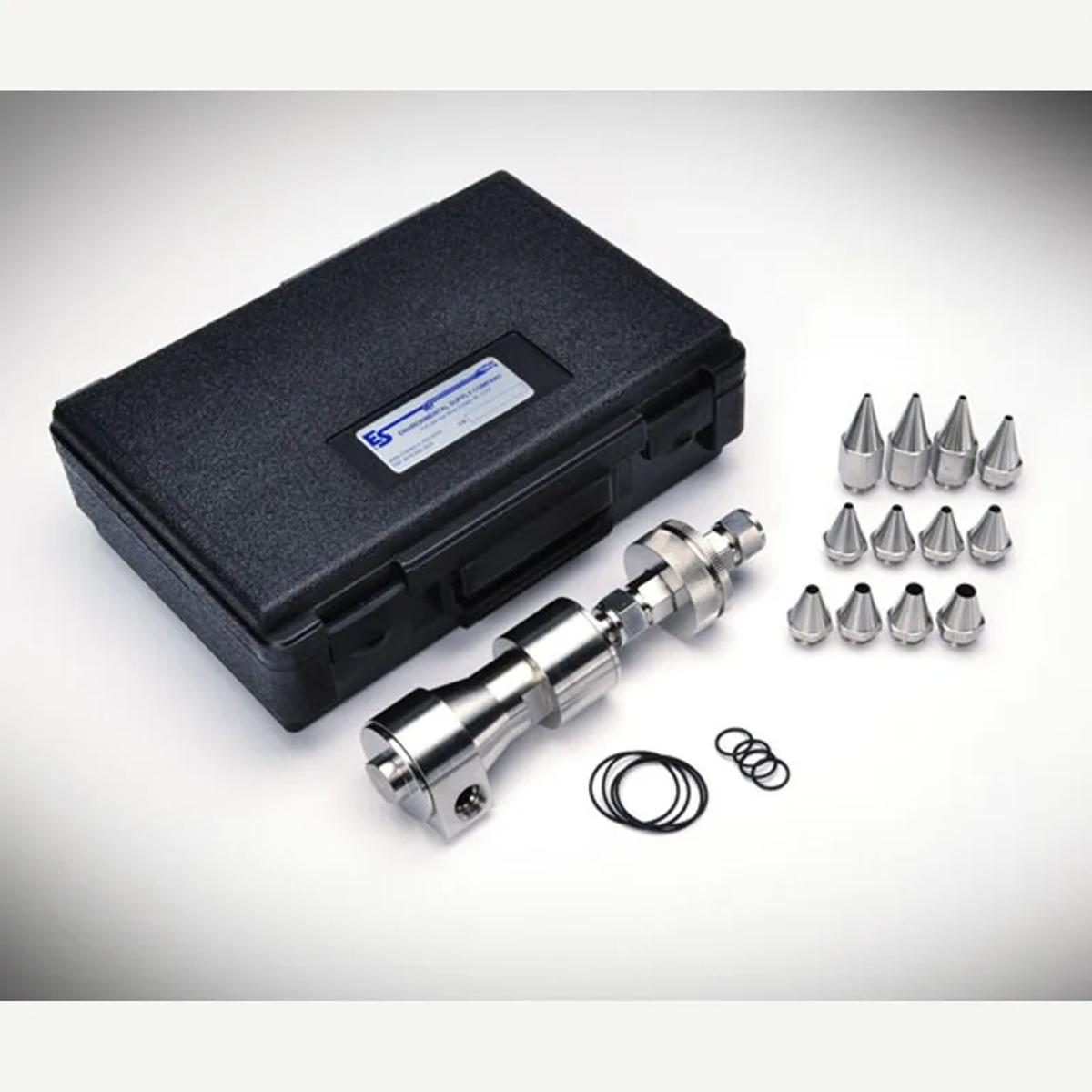

PM10-SS PM10 Stainless Steel Cyclone Set
The PM10-SS Stainless Steel Cyclone Set is manufactured to the interior dimensional specifications defined by the USEPA in Method 201A for in-stack measurement of particulate matter, 10 microns and less. The set includes the cyclone body, 12 nozzles, a 47mm in-line filter holder, and O-rings in a foam-lined case. The filter holder outlet mounts directly to a standard Method 5 probe assembly. The PPS12-Y-PM10 Modular Type S Pitot Tip, not included, is required to extend the pressure planes even with the cyclone inlet nozzle.
Features
- (12) Stainless Steel Nozzles
- (1) 47mm In-line Filter Holder
- (1) Cyclone
- Foam-lined Case
- O-rings Included
- *Filter Media Not Included
Options:
- Teflon™ coated nozzles and cyclones are also available
- Different size nozzles may be substituted for existing nozzles in the set.
Specifications
Qty. I Part # I Description
- (1) PM10SN01-01 .125" Inlet Stainless Steel PM10 Nozzle
- (1) PM10SN01-02 .136" Inlet Stainless Steel PM10 Nozzle
- (1) PM10SN01-03 .150" Inlet Stainless Steel PM10 Nozzle
- (1) PM10SN01-04 .164" Inlet Stainless Steel PM10 Nozzle
- (1) PM10SN01-05 .180" Inlet Stainless Steel PM10 Nozzle
- (1) PM10SN01-06 .197" Inlet Stainless Steel PM10 Nozzle
- (1) PM10SN01-07 .215" Inlet Stainless Steel PM10 Nozzle
- (1) PM10SN01-08 .233" Inlet Stainless Steel PM10 Nozzle
- (1) PM10SN01-09 .264" Inlet Stainless Steel PM10 Nozzle
- (1) PM10SN01-10 .300" Inlet Stainless Steel PM10 Nozzle
- (1) PM10SN01-11 .342" Inlet Stainless Steel PM10 Nozzle
- (1) PM10SN01-12 .390" Inlet Stainless Steel PM10 Nozzle
(2) ORG-016-V Viton #16 O-ring
